Telescopic Hydraulic Cylinder for Front-End Dump Trailer Lifting.

Related Series

Front-End Telescopic Hydraulic Cylinder for Dump Trailer

AiSoar front-end telescopic hydraulic cylinders are designed for dump trailers that require a long lifting stroke within limited installation space. The multi-stage telescopic structure extends progressively to raise the front of the dump body and achieve an efficient unloading angle.

Standard models are available with stroke lengths from 78 to 144 inches, together with customized mounting dimensions, hydraulic ports and cylinder configurations for OEM production and replacement projects.

Standard Stroke:	78–144 in
Hydraulic Port:	SAE #8, 3/4-16 UNF
Application:	Dump Trailer
Lead time:	2~6 weeks
Standard Series	TC7T and TC12T
Customized:	Available

TR

Front-End Telescopic Hydraulic Cylinder

Detailed Drawing

Model Code System

Front-End Telescopic Hydraulic Cylinder

Tie rod hydraulic cylinders are robust and versatile components used in various industrial and agricultural applications. They consist of a cylinder barrel, piston, piston rod, and end caps connected by tie rods. These tie rod hydraulic cylinders are known for their durability, ease of service and repair due to the tie-rod design, and ability to withstand high pressure. Suitable for diverse applications, they come in various sizes and can be customized to meet specific requirements.

Telescopic Hydraulic Cylinder for Front-End Dump Trailer Lifting

A front-end telescopic cylinder is installed between the trailer chassis and the front section of the dump body. When hydraulic pressure is supplied, the telescopic stages extend progressively and raise the dump body around its rear pivot point.

Compared with a conventional single-stage hydraulic cylinder, a telescopic cylinder provides a much longer effective stroke while maintaining a relatively short retracted length. This makes it suitable for dump trailers where the available mounting space is limited but a large lifting height and dumping angle are required.

AiSoar supplies standard dump trailer telescopic cylinders and develops customized cylinders according to trailer drawings, installation dimensions, existing cylinder samples or replacement requirements.

Key Product Advantages

Long Stroke with Compact Installation

The multi-stage cylinder structure provides a long total stroke without requiring the same installation length as a conventional single-stage cylinder.

Designed for Front-End Mounting

The cylinder is designed for installation near the front of the dump body, helping the trailer achieve an efficient lifting geometry and unloading angle.

Progressive Telescopic Extension

The cylinder stages extend progressively during operation, providing controlled movement throughout the lifting cycle.

Standard and Custom Models

Choose from standard 78, 90, 108, 120 and 144-inch stroke models, or request a cylinder designed around your trailer structure.

Replacement Cylinder Solutions

Replacement cylinders can be developed according to an existing model number, dimensional drawing, installation measurements or physical sample.

OEM Manufacturing Support

Custom cylinders are available for dump trailer manufacturers, hydraulic system integrators, distributors and replacement-parts suppliers.

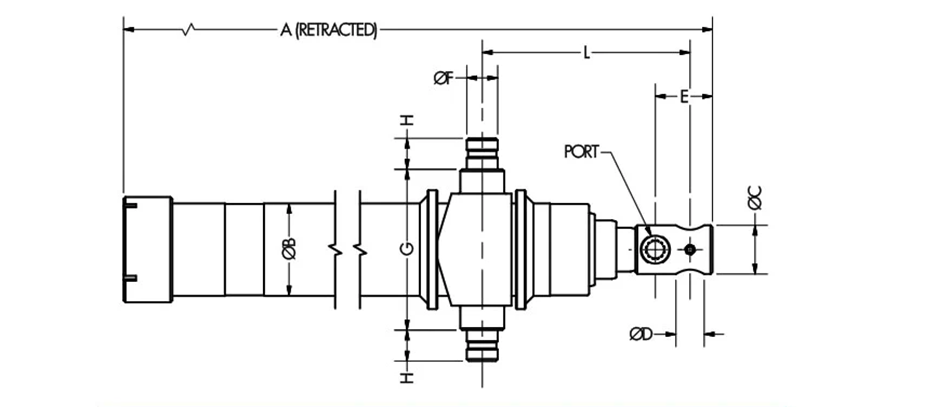

Front-End Telescopic Hydraulic Cylinder Drawing

We can check the main sizes in below drawing

Model

STROKE

A

B

C

D

E

F

G

H

L

PORT

WEIGHT (lbs)

TC7T-078

78″

35.5″

3.75″

2″

1.063″

2.25″

1.25″

6.5″

1.25″

7″

SAE#8 (3/4-16UNF)

68

TC7T-090

90″

39.5″

3.75″

2″

1.063″

2.25″

1.25″

6.5″

1.25″

7″

SAE#8 (3/4-16UNF)

75

TC7T-108

108″

45.5″

3.75″

2″

1.063″

2.25″

1.25″

6.5″

1.25″

7″

SAE#8 (3/4-16UNF)

101

TC12T-078

78″

34.75″

4.4″

2″

1.063″

2.25″

1.5″

7.5″

1.5″

7″

SAE#8 (3/4-16UNF)

106

TC12T-090

90″

38.75″

4.4″

2″

1.063″

2.25″

1.5″

7.5″

1.5″

7″

SAE#8 (3/4-16UNF)

107

TC12T-108

108″

44.75″

4.4″

2″

1.063″

2.25″

1.5″

7.5″

1.5″

7″

SAE#8 (3/4-16UNF)

132

TC12T-120

120″

48.75″

4.4″

2″

1.063″

2.25″

1.5″

7.5″

1.5″

7″

SAE#8 (3/4-16UNF)

143

TC12T-144

144″

56.75″

4.4″

2″

1.063″

2.25″

1.5″

7.5″

1.5″

7″

SAE#8 (3/4-16UNF)

166

Get Your Front-End Telescopic Hydraulic Cylinders Today!

Call us or visit our website to get more information about the hydraulic cylinders you need.

Material

We Always Use Good Quality Material For Our TR Cylinders

ROD:Hard chrome plated.
TUBE:Precision honed steel for extended seal life. Tie-rods: Heavy duty, high strength.
GLAND:Ductile iron.
PISTON:Steel.
END MOUNTS:Ductile Iron female clevis with pins and clips included.
PORTS:NPT,NPTF&SAE is available.
SEALS:Hallite.
PAINT:Black(STD), color and other custom colors are available.
ROD ENDS:Ductile Iron female clevis with pins and clips included.

Production Processes

How We Produce TR Hydraulic Cylinders

Machining

Tie rod hydraulic cylinders machined by turning and milling compound centers of Mazac and Dawei, the tolerance and accuracy of each parts will be good and stable.

Cleaning

Each parts of the tie rod hydraulic cylinders, will be cleaned by Ultrasonic cleaner.

Assembling

After all the pieces and components have been inspected and their cleanliness has been checked, the actual tie rod hydraulic cylinder assembly process can start.

Gather all parts including cylinder barrel, end caps, piston, piston rod, seals, and tie rods.
Attach the piston to the piston rod and secure it. Install seals onto the piston.
Carefully slide the piston and rod assembly into the cylinder barrel.
Secure the end caps to the cylinder barrel using tie rods. Ensure they are aligned properly.
Install appropriate seals and perform a pressure test to ensure there are no leaks and the cylinder operates correctly.

Inspecting

Various precision inspection equipment is applied in the quality control, so we have 100% detection capability and traceability.

Testing

1.The Salty Testing Machine test the chrome plated rod and to see the capacity for the anti-corrosion performance.

2.Making the 72 or 96 hours for the testing, we can make it longer according to customers special requirement.

Painting

1.Painting the undercoat, normally it takes one day to dry.

2.Painting the finish painting.

We have our own standard painting color, and thickness of painting is 40 microns.

Package

Bubble bag +Wooden case

Optional Package

Bubble bag + Carton box +Wooden case

Our Factory

OEM Custom Service is Available

Customized Solutions for Your Hydraulic Needs

At AiSoar Hydraulics, we specialize in manufacturing custom tie-rod hydraulic cylinders designed around your exact needs. From tubing and rod plating to seals, mounting styles, pressure ratings, colors, packaging, and private labeling, we offer complete customization support for OEM and industrial customers.

Selecting a Custom Tie-Rod Hydraulic Cylinder

When selecting a custom tie-rod hydraulic cylinder, it is important to evaluate several key specifications to ensure the right fit for your equipment and operating conditions, including:

Bore Diameter
Rod Diameter
Stroke Length
Pin Hole Diameter / Mounting
Dimensions
Single- or Double-Acting
Design
Working Pressure
Requirements
Materials and Surface Coatings
Seal Type and Operating
Environment
Application and Duty Cycle

By reviewing these factors, you can confidently choose a hydraulic cylinder that matches your system requirements, improves reliability, and delivers long-term performance.

Tie Rod Hydraulic Cylinder Applications

Tie-rod hydraulic cylinders are widely used in equipment that requires stable linear force, compact installation, and easy maintenance. Typical applications include:

Agricultural Equipment – tractors, seeders, harvesters, and sprayers
Construction Machinery – loaders, lifts, compactors, and attachments
Material Handling Systems – forklifts, stackers, and scissor lifts
Waste Management Equipment – balers, compactors, and bin lifters
Transportation & Trailer Systems – dump trailers, tail lifts, and support mechanisms
Industrial Production Lines – presses, automation units, and custom machines

With custom bore, stroke, mounting style, and seal options, tie-rod cylinders can be engineered to match specific working pressures, load demands, and environmental conditions.

FAQ

Frequently Asked Questions

We’ll try to answer some of your questions

A:AiSoar TR series tie-rod hydraulic cylinders have been widely used in agricultural, trailer and loader industry. For agricultural equipment, trailer, loader, generally include the lift moving system, the hydraulic cylinder should be fixed into positon, then to move in the shape of an arc during extension and retraction. The TR cylinders with clevis mounted, are typically a good solution in the applications.

A: 1″ pin hole for bore size 1″~4″, and 1.25″ pin hole for bore size 5″.

A: Yes, it’s a rebuild-able cylinder and we do offer repair kits. Tie rod type is easy to repair.

A: Retracted length from center pin to center pin, we also call out min. length or closed length. Extended length is the retracted on centers plus the stroke, we also call out max. length or open length.

A:Rigid quality standards & control on raw materialsare always implemented in AiSoar hydraulics. We have really stable suppliers with long-term cooperative relationship. We inspection for each batch of incoming goods, and review our supplier quality performance by year.

A:Firstly, We should determine the technical parameter first: bore size, rod size, stroke, working pressure, required force (Column Load).

How to Measure Hydraulic Cylinder

Secondly, check the drawings’sizes carefully, especially the mounting sizes, include the distance of clevis, gland port location as below pic shows, and etc.

parts of a hydraulic cylinder

(Port location determined from viewing cylinder from base end)

Others information: Port style and size, painting, clevis pin installation and retainer options, package.

Aisoar Hydraulic Cylinders Catalogue

The tie-rod cylinders with clevis mounted both rod ends and base ends, we call out TR series. AiSoar tie rod cylinders, available in a variety of bore and stroke sizes, bore size ranges from 2 to 5 inches, stroke ranges from 4 to 48 inches, working pressure ranges from 2500PSI to 3000PSI.
