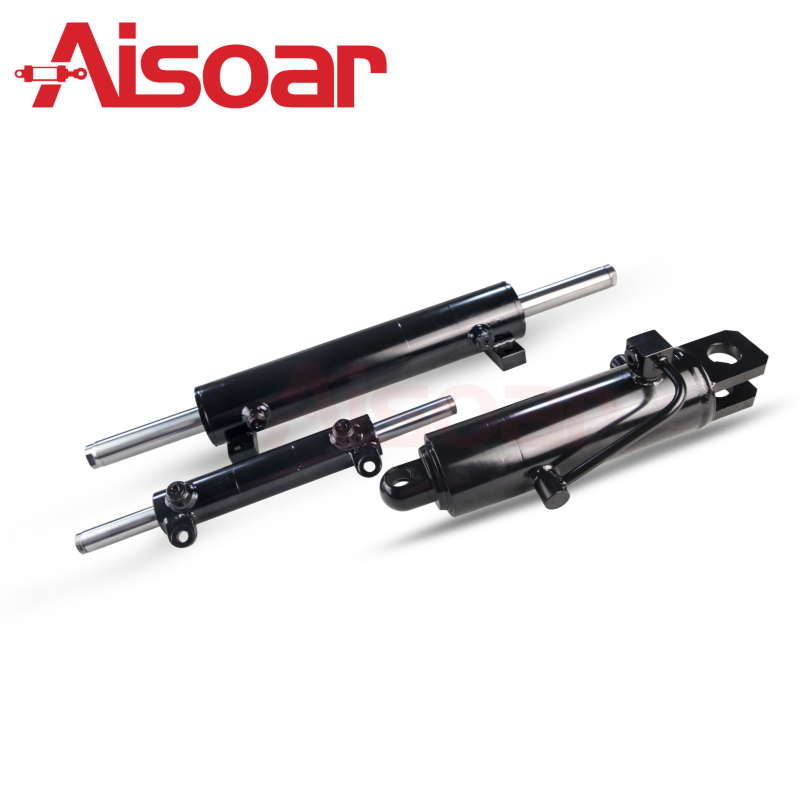

Agricultural Hydraulic Cylinders

Hydraulic cylinders for ag machinery and farm equipment are essential in keeping critical supply chains together. AiSoar Hydraulics are designed and manufactured to withstand environmental exposure, extended operations, and extreme temperatures.

Model:	Agricultural Hydraulic Cylinder
PSI:	3000
Application:	Tractor, Harvester, Backhoe, Round Baler
Lead time:	3-6 weeks
Sample:	Available
Customized:	Available

Agricultural Hydraulic Cylinders

Detailed Drawing

Knowing More Information about Agricultural Hydraulic Cylinders

Agricultural Hydraulic Cylinders

AiSoar Hydraulics has the knowledge and expertise to design, engineer & manufacture a wide array of custom agricultural hydraulic cylinders.

Agricultural Hydraulic Cylinders – Durable, Reliable, and Built for Heavy-Duty Performance

AiSoar Agricultural Hydraulic Cylinders are designed to meet the demanding needs of modern farming equipment. Whether for tractors, harvesters, or plows, our hydraulic cylinders are engineered for maximum efficiency and long-term durability, even in the harshest agricultural environments.

Agricultural Hydraulic Cylinders Characteristics – Built for Tough Farming Conditions

AiSoar Agricultural Hydraulic Cylinders are specifically designed to withstand the challenges of farming machinery. These cylinders are crafted to handle the demanding and often harsh environments faced by agricultural equipment, ensuring reliable performance, extended lifespan, and optimal efficiency.

Rod Hardness	≥Hv700
Rod Plating thickness	≥30μm
Working Environment	High temperature(high temperature resistant seals), cold (cold resistant seals) and other special fluid type.
Material	C1045steel, 304, 316 stainless steel, brass and etc.
Size	Non-standard size, custom bore size/rod size/stroke lengths.
Mounting Type	Clevis •Cross-tube •Flange •Tang •Trunnion •Spherical bushings •Foot mount
Structure	Single acting, Double acting, Double rods and other special structure.
Oil Port	Size, Location, Style, NPT,NPTF&SAE is available.
Function + Valve	Pilot operated check, integrated valve, and etc.
Surface Treatment	Paint by Raul, Pantone or Color board.
Pacakge	Plastic bage+wooden box.

Your Agriculture Application

Good Quality Cylinders for Any Your Agriculture Application

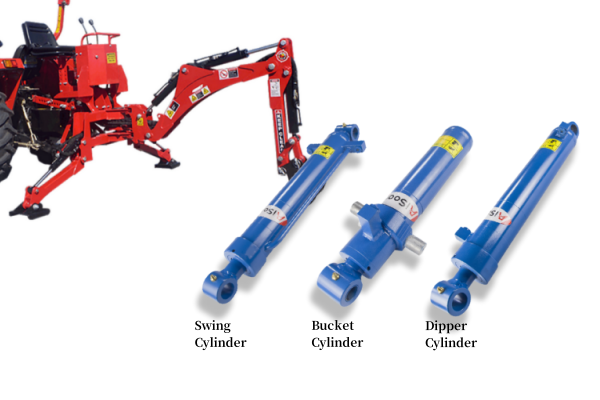

Tractors	Backhoe Attachments	Harvesters	Front End Loader	Planters
3-Point Hitch Lift/ Tilt /Pitch Cylinders Bale Hugger Cylinders Bucket (Multi-Purpose) Cylinders Bucket 4-in-1 Cylinders Bucket Tilt Dump Cylinders Clam Cylinders Grapple Bucket Cylinders Grapple Fork Cylinders Haystacker Cylinders Loader Boom Arm Lift Cylinders Loader Bucket Tilt Dump Cylinders Manure Grapple Cylinders Round Bale / Silage Grapple Cylinders Top Link Hydraulic Cylinders	Arm Crowd Dipper Cylinders Boom Cylinders Bucket Cylinders Outrigger Stabilizer Jack leg Cylinders Swing Cylinders Thumb, Bucket Clamp Cylinders	Cart Tilt Cylinders Header Lift Cylinders Hopper Raise Cylinders Steering Cylinders Feed Roll Gear Case Shift Cylinders	Bale Hugger Cylinders Boom Arm Lift Hoist Cylinders Bucket 4-in-1 Cylinders Bucket Tilt Dump Cylinders Grapple Bucket Cylinders Grapple Fork Cylinders Manure Grapple Cylinders Round Bale / Silage Grapple Cylinders	Folding Marker Wing Cylinders High Lift Transport Cylinders Lift Assist Cylinders Lift Cylinders Main Lift Cylinders Marker Cylinders Master Cylinders Slave Lift Cylinders Wheel Frame Cylinders Wing Frame Cylinders

Keeping Your Machinery Working

Get Your Harvester Hydraulic Cylinders Today!

Call us or visit our website to get more information about the hydraulic cylinders you need.

Material

We Always Use Good Quality Material For Our Agricultural Hydraulic Cylinders

ROD:Hard chrome plated.
TUBE:Precision honed steel for extended seal life.
GLAND:Steel.
PISTON:Steel.
END MOUNTS:Steel cast female clevises with pins and clips included
PORTS:NPT,NPTF&SAE is available.
SEALS:Hallite.
PAINT:Black(STD), color and other custom colors are available.
ROD ENDS:Steel cast female clevises with pins and clips included.

Agricultural Hydraulic Cylinders

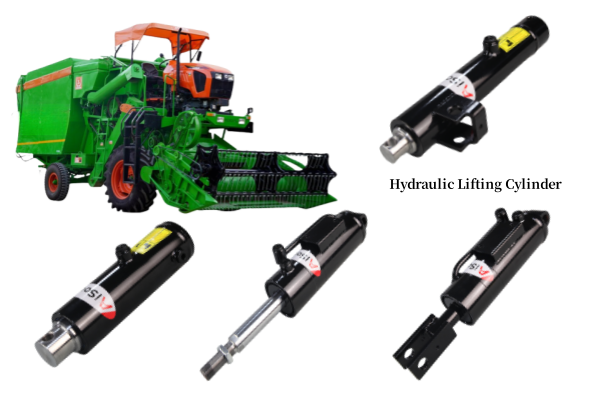

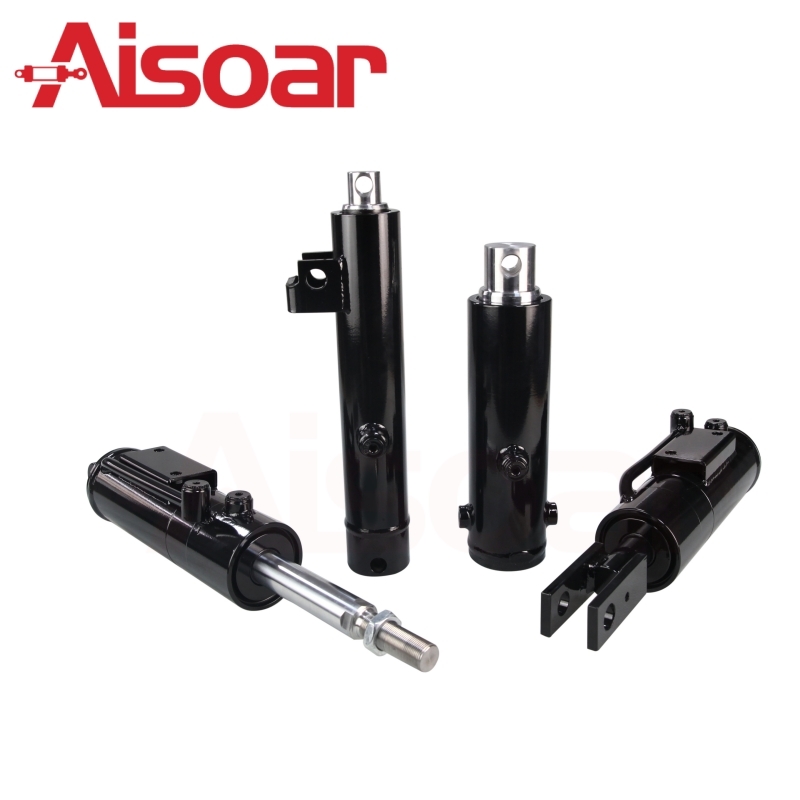

Harvester Hydraulic Lifting Cylinders

1. Front and rear pin hole mounting

2. Customised U-type connector at the front of the cylinder for easy integration and installation

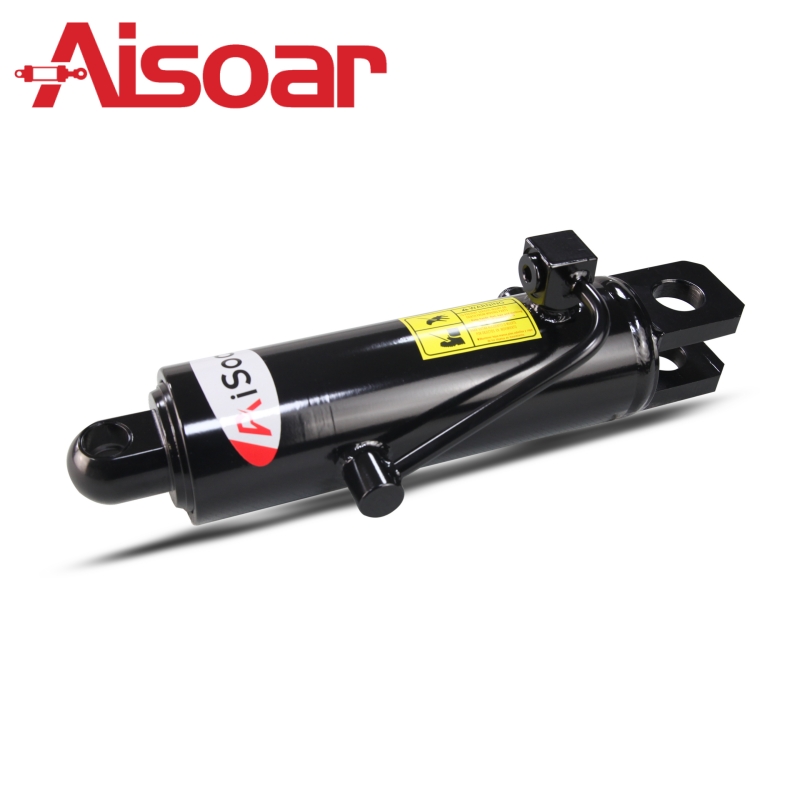

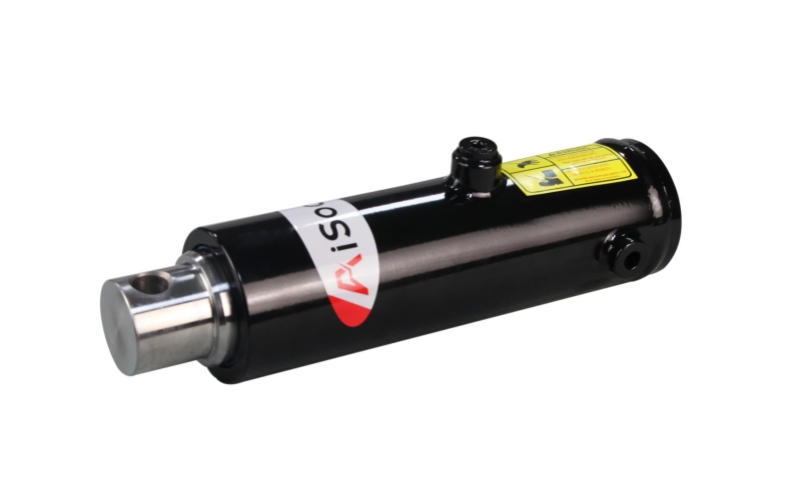

Harvester Hydraulic Lifting Cylinder

1. Single acting hydraulic cylinder is compact, durable, efficient, cost-effective, reliable, easy maintenance

2. Rod end pin hole mounted

3. Oil port moved up, tail end customised with left and right trunnions

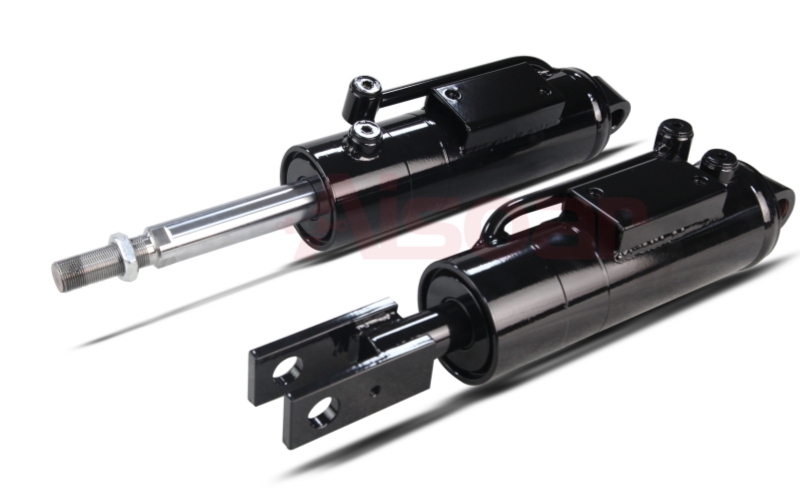

Harvester Hydraulic Lifting Cylinder

1. Customised Y-joints at the rod end, welded sleeve connection at the end

2. Customised oil port, rod end oil port leads to the end through a hard tube for easy access to the hose.

3. Cylinder body integrated U-shaped mounting plate, which is convenient to
be connected with the equipment

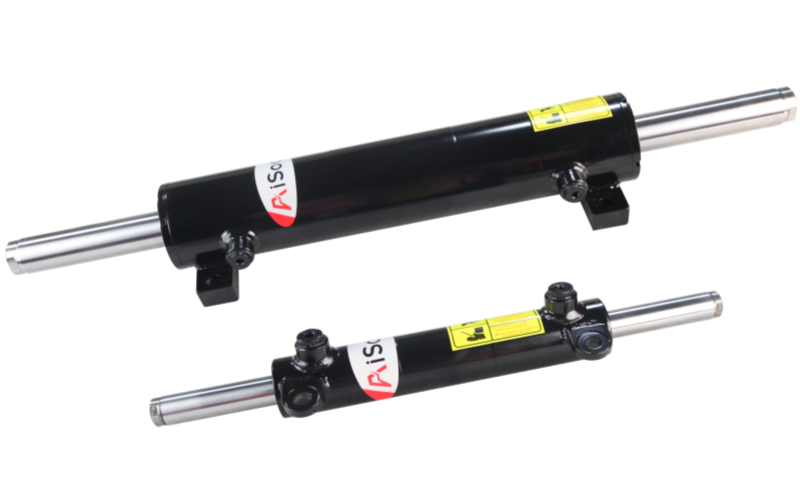

Double Ended Steering Cylinder

AiSoar hydraulic steering cylinder is double acting balanced cylinder designed for steering applications

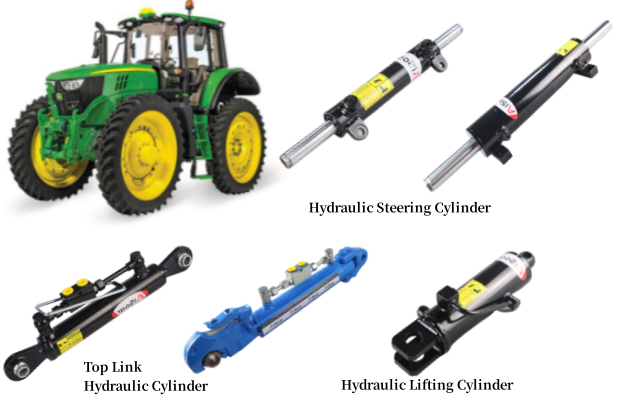

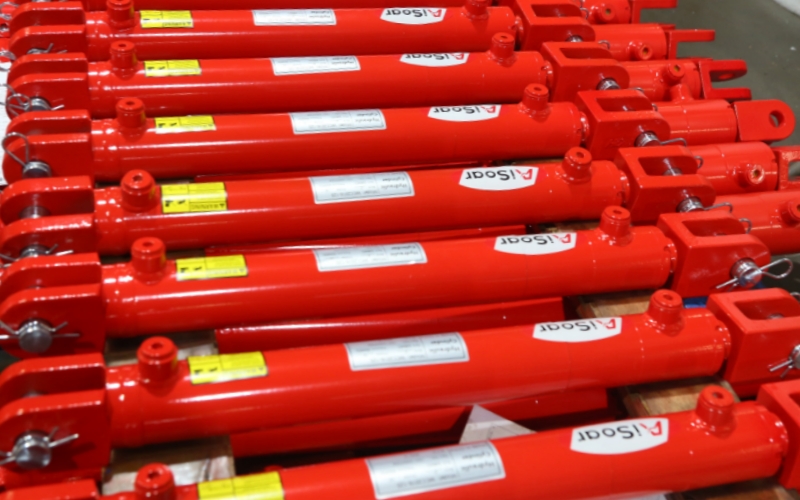

Tractor Hydraulic Lifting Cylinders

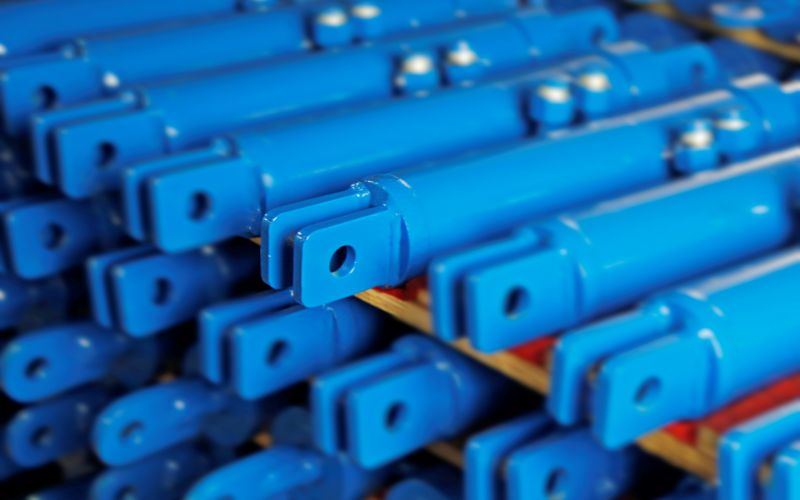

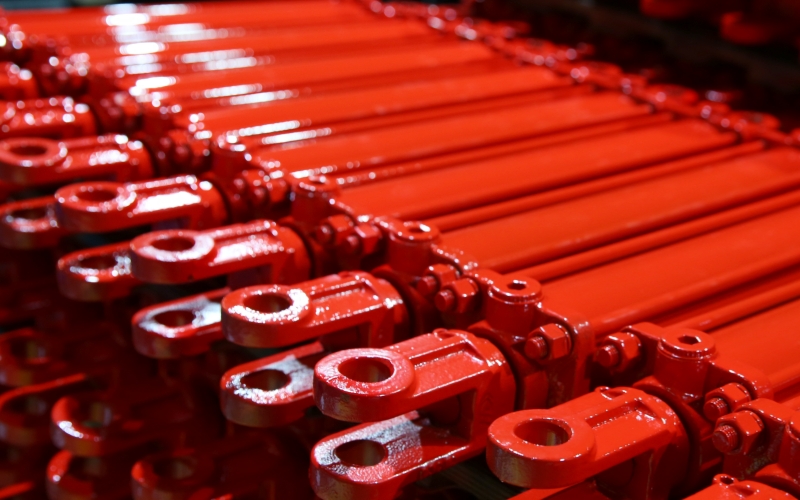

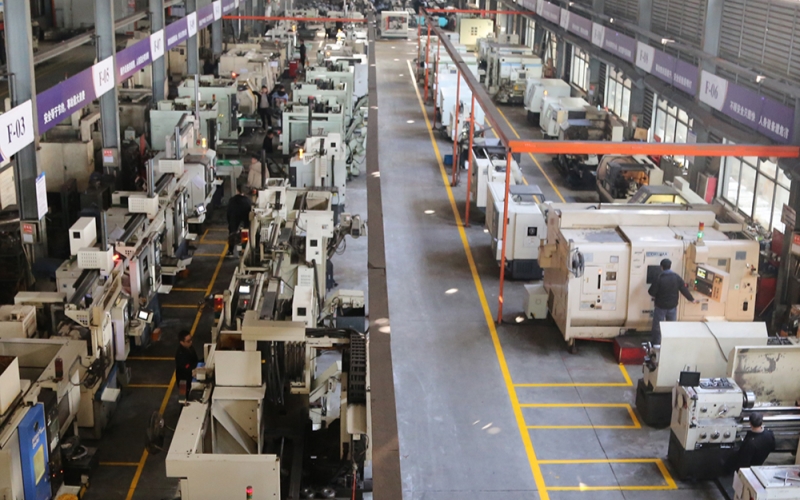

Our Factory

FAQ

Frequently Asked Questions

We’ll try to answer some of your questions

A: Mount type, pls tell us how you need to install it on your device.

A: Some assembly is required when setting up the jack, such as mounting the base, connecting the hydraulic pump, and securing hoses. However, the jack is typically pre-assembled for ease of installation.

A: Yes, our hydraulic jacks are designed for versatility. They can be used for a variety of trailer types, including flatbed trailers, RVs, utility trailers, and more, depending on the weight and mounting specifications.
