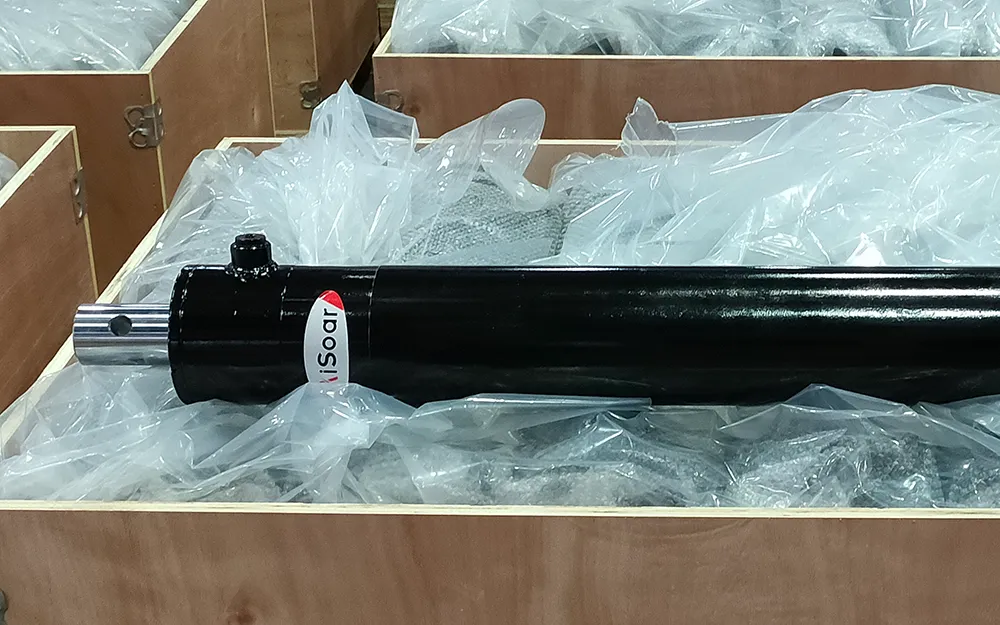

RUWCP HYDRAULIC RAM CYLINDER WITH CROSS-TUBE BASE
Detailed Drawing
Model Code System
WCP Hydraulic Cylinder
The WCP Hydraulic Cylinders Model Code System is a comprehensive system of codes used to identify and specify the various components and specifications of hydraulic cylinders.
WCP Hydraulic Cylinder Drawing

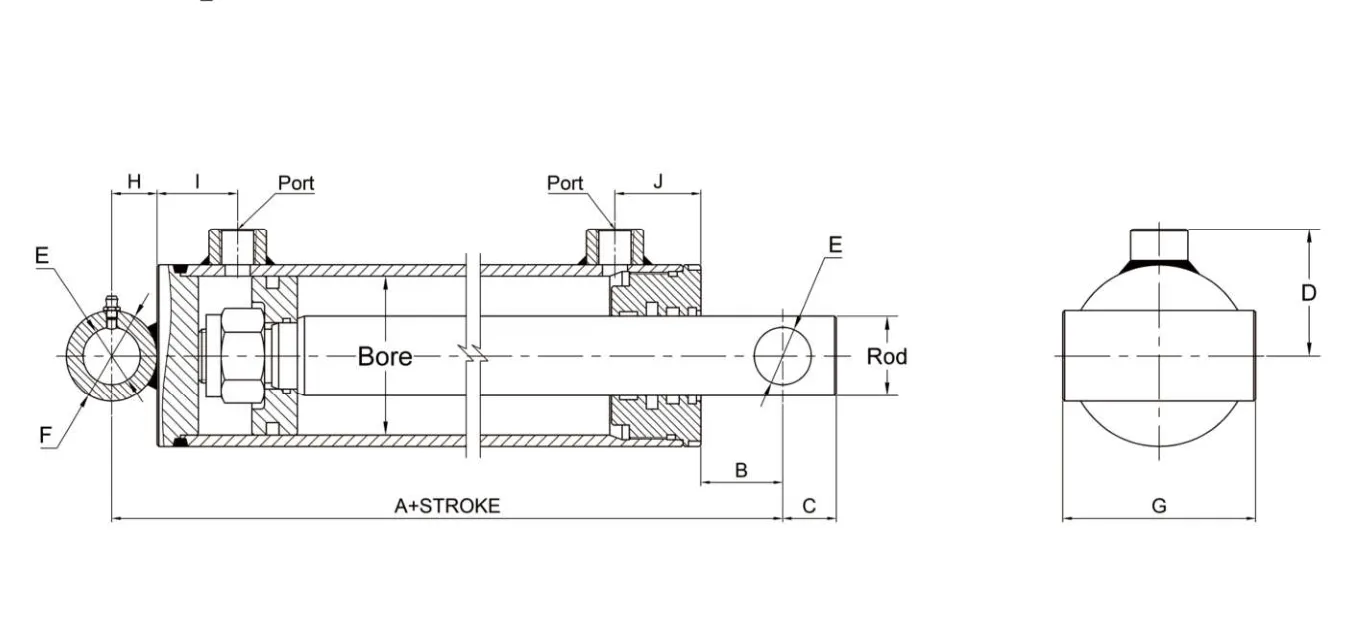

We can check the main sizes in below drawing
| BORE | ROD | PORTS | A | B | C | D | E | F | G | H | I | J |
| 1.50" | 1.00" | SAE 6 | 7.00" | 2.507" | 0.625" | 1.625" | 0.64" | 1.25" | 2.00" | 0.625" | 0.865" | 2.125" |
| 2.00" | 1.25" | SAE 8 | 8.00" | 3.444" | 0.75" | 1.874" | 0.765" | 1.25" | 2.50" | 0.625" | 0.995" | 1.875" |
| 2.50" | 1.375" | SAE 8 | 8.00" | 3.125" | 0.75" | 2.125" | 0.765" | 1.25" | 3.00" | 0.625" | 1.125" | 2.000" |
| 3.00" | 1.50" | SAE 8 | 8.00" | 2.629" | 1.0" | 2.375" | 1.015" | 1.50" | 3.50" | 0.75" | 1.18" | 2.187" |
| 3.50" | 1.75" | SAE 8 | 8.00" | 2.438" | 1.0" | 2.624" | 1.015" | 1.50" | 4.00" | 0.75" | 1.25" | 2.312" |
| 4.00" | 2.00" | SAE 8 | 9.00" | 3.002" | 1.0" | 2.937" | 1.265" | 2 | 4.625" | 1.00" | 1.56" | 2.185" |
Data Table
Here we can see importants dimensional datas for WCP cylinders
| PART NUMBER | BORE & STROKE | DIMENSIONS | ROD DIAMETER | PIN SIZE | PORTS | COLUMN LOADS(LBS) | WEIGHT (LBS) | |
| RETRACTED | EXTENDED | |||||||
| WCP-1504 | 1.5"×4" | 11" | 15" | 1" | 5/8" | SAE 6 | 5300 | 7 |
| WCP-1506 | 1.5"×6" | 13" | 19" | 5300 | 8 | |||
| WCP-1508 | 1.5"×8" | 15" | 23" | 5300 | 9 | |||
| WCP-1510 | 1.5"×10" | 17" | 27" | 5300 | 11 | |||
| WCP-1512 | 1.5"×12" | 19" | 31" | 5300 | 12 | |||
| WCP-1514 | 1.5"×14" | 21" | 35" | 5300 | 13 | |||
| WCP-1516 | 1.5"×16" | 23" | 39" | 5300 | 14 | |||
| WCP-2004 | 2"×4" | 12" | 16" | 1 1/4" | 3/4" | SAE 8 | 9400 | 11 |
| WCP-2006 | 2"×6" | 14" | 20" | 9400 | 12 | |||
| WCP-2008 | 2"×8" | 16" | 24" | 9400 | 14 | |||
| WCP-2010 | 2"×10" | 18" | 28" | 9400 | 16 | |||
| WCP-2012 | 2"×12" | 20" | 32" | 9400 | 17 | |||
| WCP-2014 | 2"×14" | 22" | 36" | 9400 | 19 | |||
| WCP-2016 | 2"×16" | 24" | 40" | 9400 | 21 | |||
| WCP-2018 | 2"×18" | 26" | 44" | 9400 | 22 | |||
| WCP-2020 | 2"×20" | 28" | 48" | 9400 | 24 | |||
| WCP-2024 | 2"×24" | 32" | 56" | 7300 | 27 | |||
| WCP-2028 | 2"×28" | 36" | 64" | 5600 | 31 | |||
| WCP-2030 | 2"×30" | 38" | 68" | 4900 | 33 | |||
| WCP-2032 | 2"×32" | 40" | 72" | 4400 | 34 | |||
| WCP-2036 | 2"×36" | 44" | 80" | 3500 | 38 | |||
| WCP-2040 | 2"×40" | 48" | 88" | 2900 | 41 | |||
| WCP-2042 | 2"×42" | 50" | 92" | 2700 | 43 | |||
| WCP-2048 | 2"×48" | 56" | 104" | 2100 | 48 | |||
| WCP-2060 | 2"×60" | 68" | 128" | 1400 | 58 | |||
| WCP-2072 | 2"×72" | 80" | 152" | 900 | 68 | |||
| WCP-2504 | 2.5"×4" | 12" | 16" | 1 3/8" | 3/4" | SAE 8 | 14700 | 14 |
| WCP-2506 | 2.5"×6" | 14" | 20" | 14700 | 16 | |||
| WCP-2508 | 2.5"×8" | 16" | 24" | 14700 | 18 | |||
| WCP-2510 | 2.5"×10" | 18" | 28" | 14700 | 20 | |||
| WCP-2512 | 2.5"×12" | 20" | 32" | 14700 | 22 | |||
| WCP-2514 | 2.5"×14" | 22" | 36" | 14700 | 24 | |||
| WCP-2516 | 2.5"×16" | 24" | 40" | 14700 | 26 | |||
| WCP-2518 | 2.5"×18" | 26" | 44" | 14700 | 28 | |||
| WCP-2520 | 2.5"×20" | 28" | 48" | 14600 | 30 | |||
| WCP-2524 | 2.5"×24" | 32" | 56" | 10700 | 35 | |||
| WCP-2528 | 2.5"×28" | 36" | 64" | 8200 | 39 | |||
| WCP-2530 | 2.5"×30" | 38" | 68" | 7200 | 41 | |||
| WCP-2532 | 2.5"×32" | 40" | 72" | 6500 | 43 | |||
| WCP-2536 | 2.5"×36" | 44" | 80" | 5200 | 47 | |||
| WCP-2540 | 2.5"×40" | 48" | 88" | 4300 | 51 | |||
| WCP-2542 | 2.5"×42" | 50" | 92" | 3900 | 53 | |||
| WCP-2548 | 2.5"×48" | 56" | 104" | 3100 | 60 | |||
| WCP-2560 | 2.5"×60" | 68" | 128" | 2000 | 72 | |||
| WCP-3006 | 3"×6" | 14" | 20" | 1 1/2" | 1" | SAE 8 | 21200 | 21 |
| WCP-3008 | 3"×8" | 16" | 24" | 21200 | 24 | |||
| WCP-3010 | 3"×10" | 18" | 28" | 21200 | 26 | |||
| WCP-3012 | 3"×12" | 20" | 32" | 21200 | 28 | |||
| WCP-3014 | 3"×14" | 22" | 36" | 21200 | 31 | |||
| WCP-3016 | 3"×16" | 24" | 40" | 21200 | 33 | |||
| WCP-3018 | 3"×18" | 26" | 44" | 21200 | 36 | |||
| WCP-3020 | 3"×20" | 28" | 48" | 20700 | 38 | |||
| WCP-3024 | 3"×24" | 32" | 56" | 15200 | 43 | |||
| WCP-3028 | 3"×28" | 36" | 64" | 11600 | 48 | |||
| WCP-3030 | 3"×30" | 38" | 68" | 10300 | 51 | |||
| WCP-3032 | 3"×32" | 40" | 72" | 9200 | 53 | |||
| WCP-3036 | 3"×36" | 44" | 80" | 7400 | 58 | |||
| WCP-3040 | 3"×40" | 48" | 88" | 6100 | 63 | |||
| WCP-3042 | 3"×42" | 50" | 92" | 5600 | 65 | |||
| WCP-3048 | 3"×48" | 56" | 104" | 4400 | 73 | |||
| WCP-3060 | 3"×60" | 68" | 128" | 2900 | 87 | |||
| WCP-3504 | 3.5"×4" | 12" | 16" | 1 3/4" | 1" | SAE 8 | 28800 | 24 |
| WCP-3506 | 3.5"×6" | 14" | 20" | 28800 | 27 | |||
| WCP-3508 | 3.5"×8" | 16" | 24" | 28800 | 30 | |||
| WCP-3510 | 3.5"×10" | 18" | 28" | 28800 | 33 | |||
| WCP-3512 | 3.5"×12" | 20" | 32" | 28800 | 36 | |||
| WCP-3514 | 3.5"×14" | 22" | 36" | 28800 | 39 | |||
| WCP-3516 | 3.5"×16" | 24" | 40" | 28800 | 42 | |||
| WCP-3518 | 3.5"×18" | 26" | 44" | 28800 | 45 | |||
| WCP-3520 | 3.5"×20" | 28" | 48" | 28800 | 48 | |||
| WCP-3524 | 3.5"×24" | 32" | 56" | 28100 | 54 | |||
| WCP-3528 | 3.5"×28" | 36" | 64" | 21500 | 60 | |||
| WCP-3530 | 3.5"×30" | 38" | 68" | 19100 | 63 | |||
| WCP-3532 | 3.5"×32" | 40" | 72" | 17000 | 66 | |||
| WCP-3536 | 3.5"×36" | 44" | 80" | 13800 | 72 | |||
| WCP-3540 | 3.5"×40" | 48" | 88" | 11400 | 79 | |||
| WCP-3542 | 3.5"×42" | 50" | 92" | 10400 | 82 | |||
| WCP-3548 | 3.5"×48" | 56" | 104" | 8100 | 91 | |||
| WCP-4008 | 4"×8" | 17" | 25" | 2" | 1 1/4" | SAE 8 | 37700 | 40 |
| WCP-4010 | 4"×10" | 19" | 29" | 37700 | 44 | |||
| WCP-4012 | 4"×12" | 21" | 33" | 37700 | 47 | |||
| WCP-4014 | 4"×14" | 23" | 37" | 37700 | 51 | |||
| WCP-4016 | 4"×16" | 25" | 41" | 37700 | 55 | |||
| WCP-4018 | 4"×18" | 27" | 45" | 37700 | 58 | |||
| WCP-4020 | 4"×20" | 29" | 49" | 37700 | 62 | |||
| WCP-4024 | 4"×24" | 33" | 57" | 37700 | 70 | |||
| WCP-4028 | 4"×28" | 37" | 65" | 35600 | 77 | |||
| WCP-4030 | 4"×30" | 39" | 69" | 31600 | 81 | |||
| WCP-4032 | 4"×32" | 41" | 73" | 28300 | 84 | |||
| WCP-4036 | 4"×36" | 45" | 81" | 22900 | 91 | |||
| WCP-4040 | 4"×40" | 49" | 89" | 19000 | 99 | |||
| WCP-4048 | 4"×48" | 57" | 105" | 13600 | 114 | |||
| WCP-4060 | 4"×60" | 69" | 129" | 9000 | 136 | |||
Get Your WCP Hydraulic Cylinders Fixed Today!
Call us or visit our website to get more information of hyraulic cylinder you need.
Material

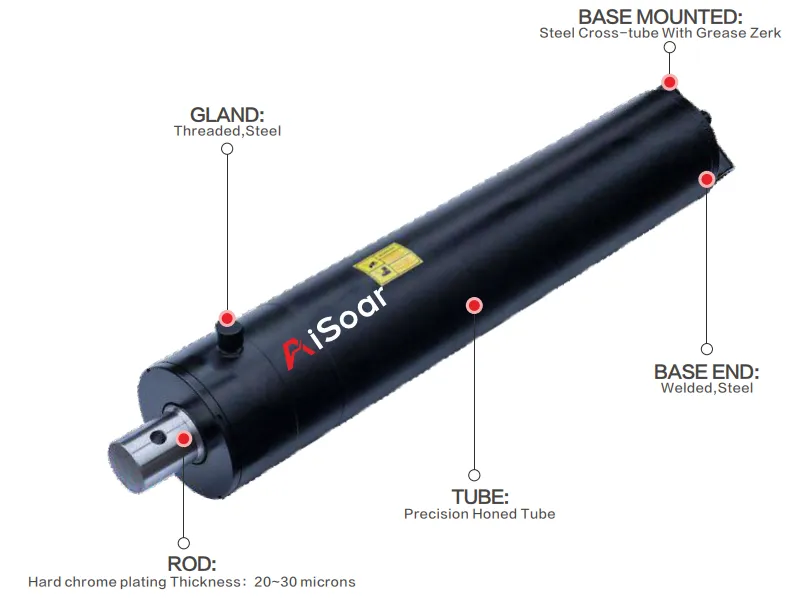

We Always Use Good Quality Material For Our WCP Cylinders

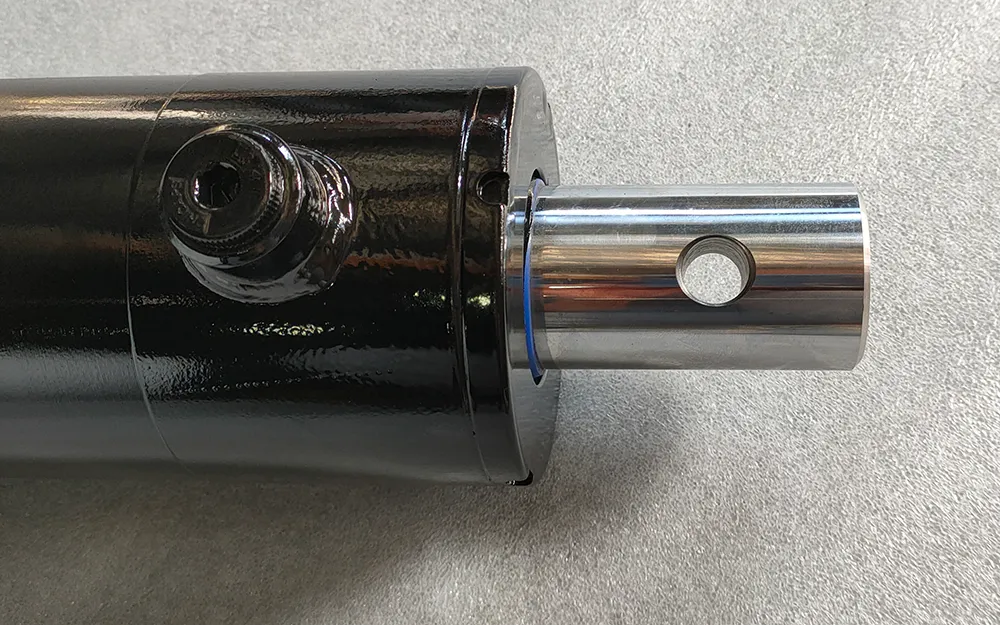

- ROD:Hard chrome plating Thickness：20~30 microns.
- TUBE:Precision honed steel for extended seal life.
- GLAND:Threaded, steel.
- PISTON:Steel.
- END MOUNTS:Steel cross-tube with grease zerk.
- PORTS:SAE, NPT are available.
- SEALS:Hallite.
- PAINT:black, custom colors are available.
- ROD ENDS:Rod eye drilled.
Production Processes
How We Produce WCP Hydraulic Cylinders
Machining

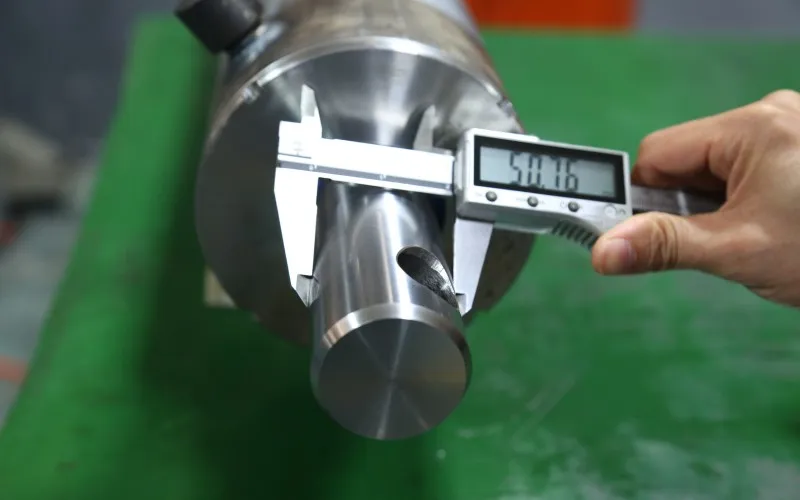

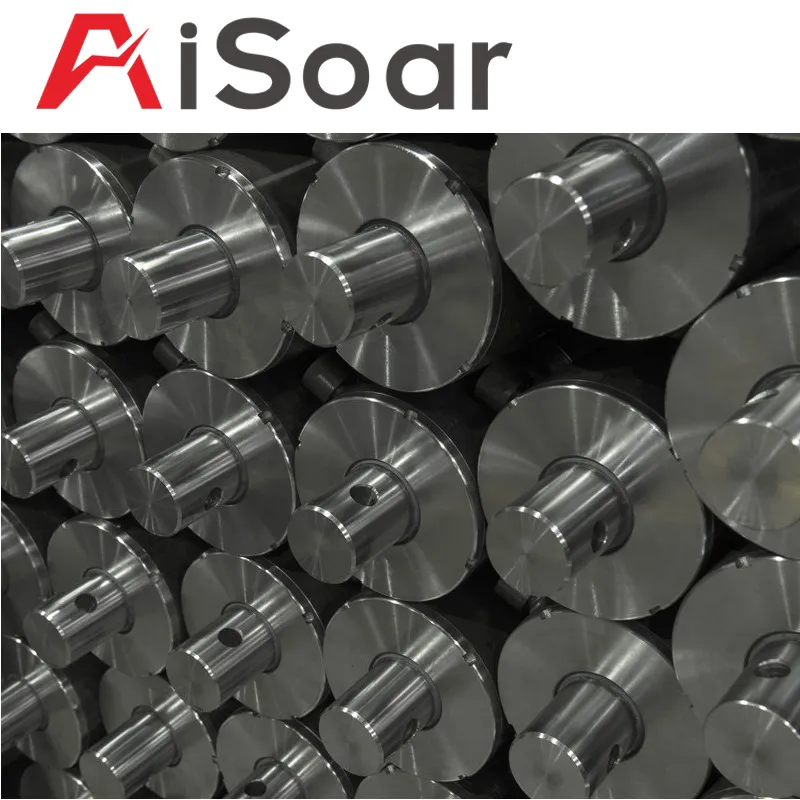

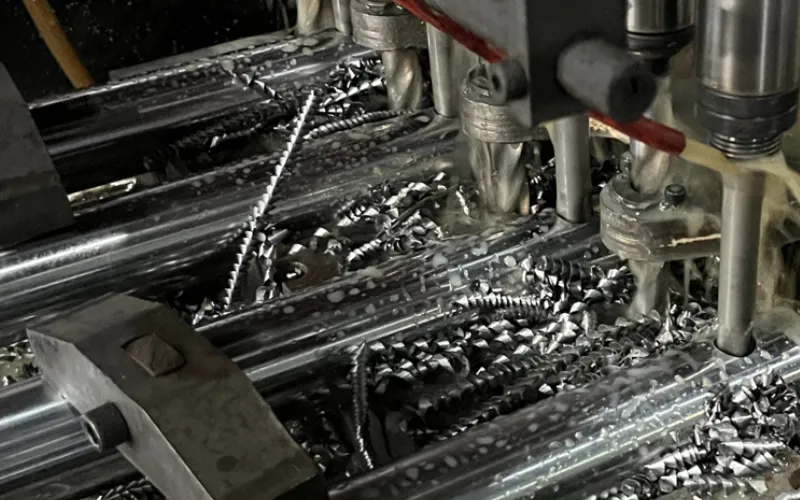

Machined by turning and milling compound centers of Mazac and Dawei, the tolerance and accuracy of each parts will be good and stable.
READ MORE
Welding
Welded by automatic welding machines and mechanical arm, results our good welding quality.
Assembling

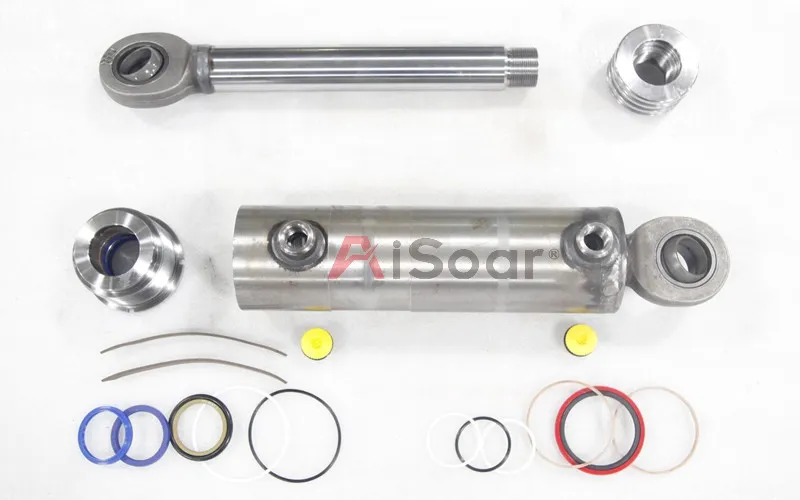

1.The gland, which holds pressure seals and supports the rod while it moves.
2.The seals, which are fitted to the gland to stop leakage and external contamination.
3.The gland is fitted to the rod.
4.The piston is then fitted to the end of the rod.
5.A locking nut is used to hold the piston in place.
6.Piston seals are fitted to the piston to crest a seal against the cylinder wall in both single -acting and double-acting applications.
7.Position the end cap and the port for welding onto the cylinder.
8.The fully assembled rod is then inserted into the cylinder.
9.With assembly complete, the hydraulic cylinder is now ready for use.
Inspecting
Various precision inspection equipment is applied in the quality control, so we have 100% detection capability and traceability.

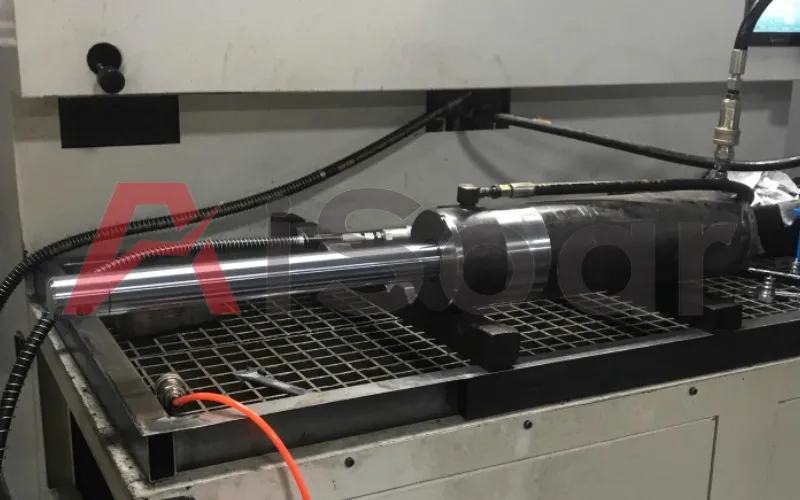

Testing
1.The Salty Testing Machine test the chrome plated rod and to see the capacity for the anti-corrosion performance.
2.Making the 72 or 96 hours for the testing, we can make it longer according to customers special requirement.

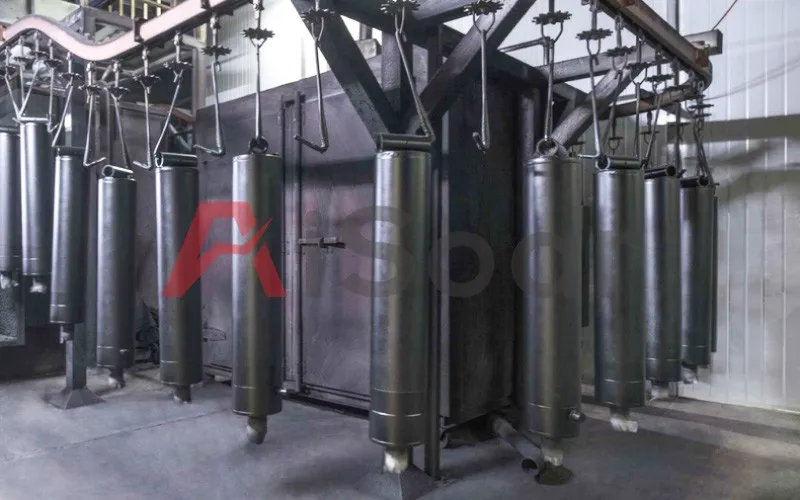

Painting
1. Painting the undercoat, normally it takes one day to dry.
2. Painting the finish painting.
We have our own standard painting color, and thickness of painting is 40 microns.
Our Factory
Our Factory
OEM Custom Service is Available
What Kind Of Cylinders Do You Need?
There are many different types of these cylinders for different industries, but no matter what type of hydraulic cylinder you need, even custom hydraulic cylinders, AiSoar is able to meet your needs too!

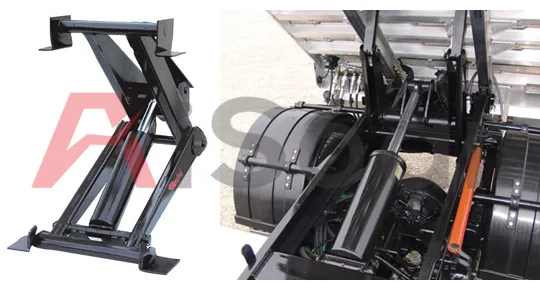

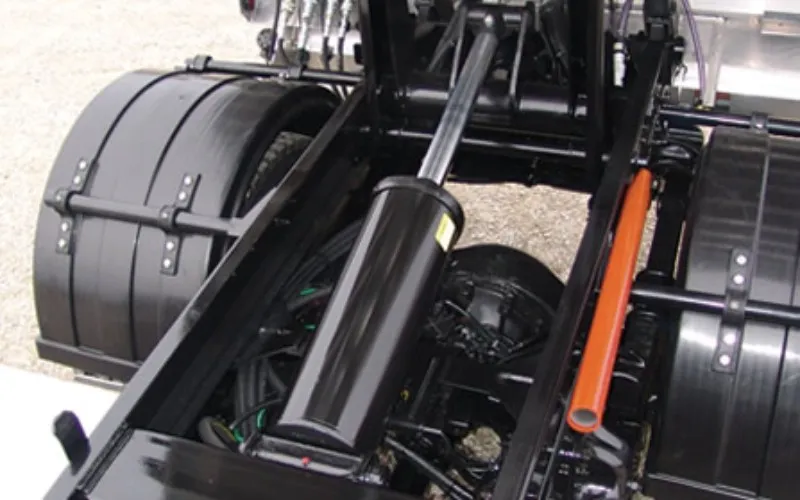

WCP HYDRAULIC RAM CYLINDER WITH CROSS-TUBE BASE Application:
WCP HYDRAULIC RAM CYLINDER WITH CROSS-TUBE BASE Application:
Tractors
Steer Loader
Lifting Platform
Mini Excavators
Agricultural Equipment
Garbage Truck, Waste/Recycling Equipment
WCP HYDRAULIC RAM CYLINDER WITH CROSS-TUBE BASE Material:
WCP HYDRAULIC RAM CYLINDER WITH CROSS-TUBE BASE Material:
• Intended Use: Double-acting application
• Piston: Ductile iron with wear ring
• Gland: Ductile iron, screw-in design with wear ring
• Tube: Precision honed steel
• Rod: Hard chrome plated
• Rod End Mount: Rod eye drilled
• Base End Mount: Steel cross-tube with grease zerk
• Tube Seal: Buna o-ring with Polytemp hytrel backup
• Rod Seal: Deep polypak with B lip design
• Rod Wiper: Urethane, snap-in
• Piston Seal: Hallite 755 provides prolonged wear resistance with wear ring
FAQ
Frequently Asked Questions
We'll try to answer some of your questions
A: Yes, we design and make customized hydrualic cylinder. Whatever do you prefer a complete customized hydrualic cylinder or slight modify base on the standard one, our engineer would like to fully support.
Aisoar Hydraulic Cylinders Catalogue
Aisoar hydraulics supplies WCP series cylinders, base end welded with cross-tube, and the rod end comes with a drilled pin-hole. The closed centres of this type cylinder is smaller, so its ideally suitable for compance equipment also. They are widely used in construction equipment, trailers, metal fabricating and waste/recycling equipment and other fields.
