AiSoar Hydraulics offers hydraulic top link cylinders compatible with tractor specifications such as Cat 1, Cat 2 and Cat 3. We can also accommodate customisation of mounting dimensions, stroke, ball joints and hook specifications.

Related Series

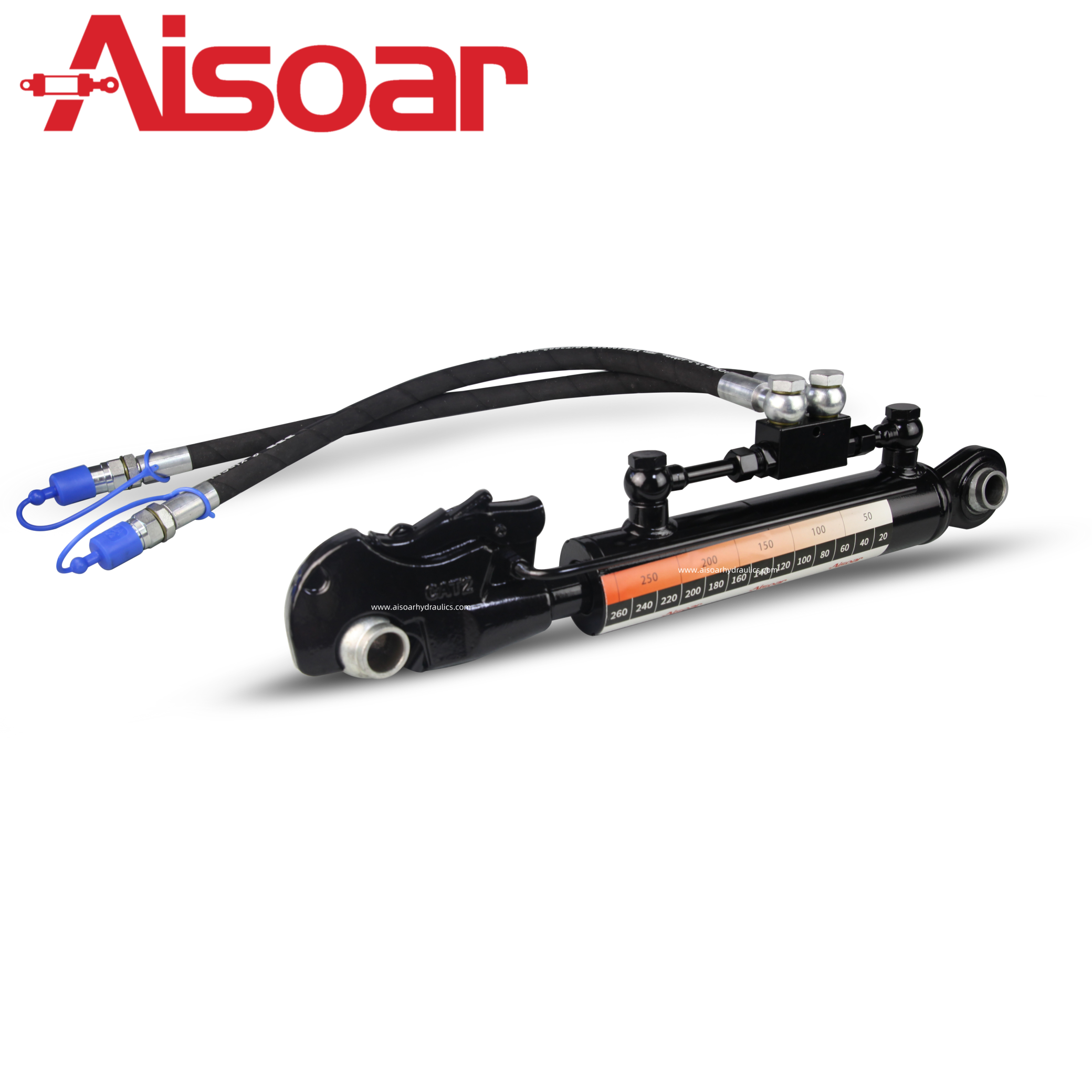

Hydraulic Top Link With Hook&Ball joint

This hydraulic top link is widely used in agricultural tractors particularly for attaching and adjusting implements such as plows, harrows, and mowers. The rapid hook allows quick, tool-free implement changes, while the ball joint delivers smooth angle adjustments, ensuring effective operation on uneven or sloped terrain. This makes it an ideal solution for farmers and contractors seeking enhanced efficiency, safety, and productivity in daily equipment operations.

Model:	Top Link Cat 2
PSI:	180 bar
Application:	Tractor
Lead time:	4~8 weeks
Sample:	Available
Customized:	Available

Suitable OEM Brands

AGCO ( Massey Ferguson), John Deere, New Holland, Case IH (CNH Industrial), Kubota

Hydraulic Top Link With Hook& Fixed Eye

Detailed Drawing

top link hydraulic cylinder manufacturer

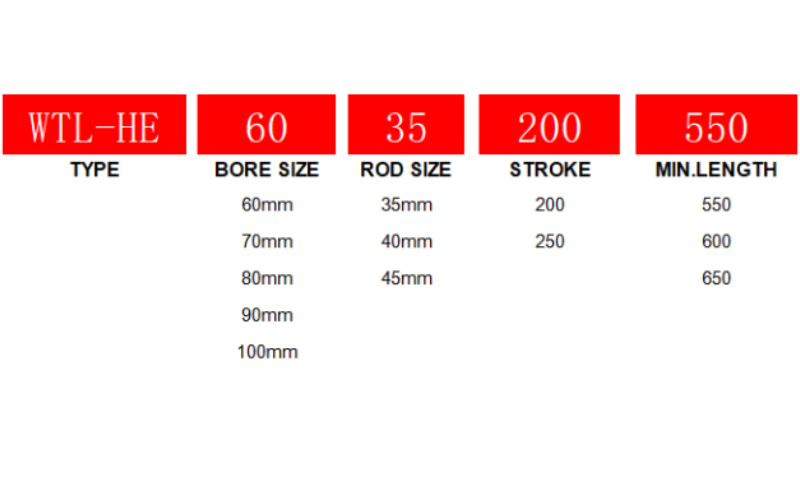

Model Code System

Hydraulic Top Link With Hook& Fixed Eye Drawing

Hydraulic Top Link With Hook& Fixed Eye Overview:

Rapid Hook Design: Allows for quick and secure attachment/detachment of implements without needing additional tools, saving valuable setup time.
Integrated Ball Joint: Provides a wide range of angular movement, ensuring smooth, flexible operation even on uneven ground or sloped surfaces.
High-Strength Construction: Made from robust, wear-resistant materials for excellent durability and reliable performance under demanding conditions.

Hydraulic Top Link With Hook& Fixed Eye Application:

This hydraulic top link is widely used in agricultural tractors particularly for attaching and adjusting implements such as plows, harrows, and mowers. The rapid hook allows quick, tool-free implement changes, while the ball joint delivers smooth angle adjustments, ensuring effective operation on uneven or sloped terrain. This makes it an ideal solution for farmers and contractors seeking enhanced efficiency, safety, and productivity in daily equipment operations.

AiSoar Standard Hydraulic Top Link With Ball Joint

Hydraulic Top Link With Hook& Fixed Eye –Brand Compatibility

Our Top Link Hydraulic Cylinders are suitable for equipment from the following OEM brands: AGCO (including Massey Ferguson), John Deere, New Holland, Case IH (CNH Industrial), and Kubota.

Type	Compatible Brand	OEM Part No.
Top Link Hydraulic Cylinder	AGCO	72628034, 72618689,72439050,72614787,72385032
With Rapid Hook	MASSEY FERGUSON	4707, 4708, 4709, 4710

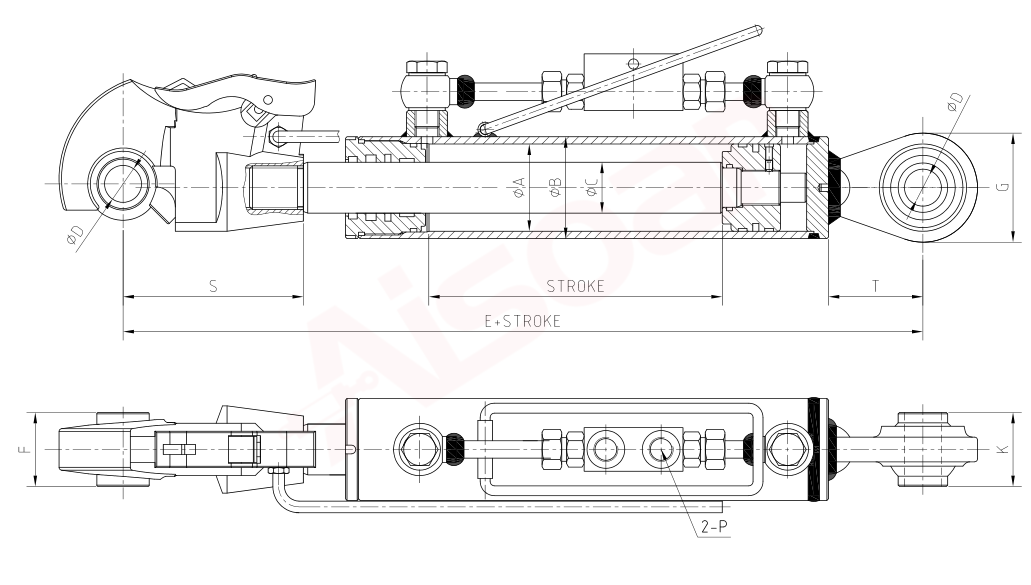

Standard Hydraulic Top Link With Ball Joint Drawing

We can check the main sizes in below drawing

Data Table

Here we can see importants dimensional datas for Top Link cylinders

Order Code	ΦA	ΦB	ΦC	Stroke	E+Stroke	F	G	K	S	ΦD	P	T	Categorise range	Tractor Horsepower	Thrust t @3000psi	Lift t @3000psi	Vol（Liter）	Weight
																		(Kg)
WTL-HE60×35×200-550	60	70	35	200	550	51	62	44	124	19.3	G3/8″	62	Cat.2	100HP (90kW)	5.9 t	3.6 t	0.55	12.5
WTL-HE60×35×250-600				250	600												0.7	13.5
WTL-HE70×35×200-550	70	80		200	550									110HP (150kW)	7.9 t	6.0 t	0.95	14
WTL-HE70×35×250-600				250	600												1.15	15.5
WTL-HE80×40×200-600	80	92	40	200	600		75	51	128	19.3		65	Cat.3	180HP (135kW)	10.4 t	7.8 t	1.1	18
WTL-HE80×40×250-650				250	650												1.35	20
WTL-HE90×40×200-600	90	105		200	600					25.4				147HP (200kW)	13.1 t	10.5 t	1.3	19.5
WTL-HE90×40×250-650				250	650												1.65	22
WTL-HE100×45×200-600	100	115	45	200	600		85	51		25.4		75		184HP (250kW)	16.5 t	13 t	1.55	22.5

										28.4

										30.4

WTL-HE100×45×250-650				250	650					32.4							1.9	25.5

Get Your Top Link HYDRAULIC CYLINDER Today!

Call us or visit our website to get more information about the hydraulic cylinders you need.

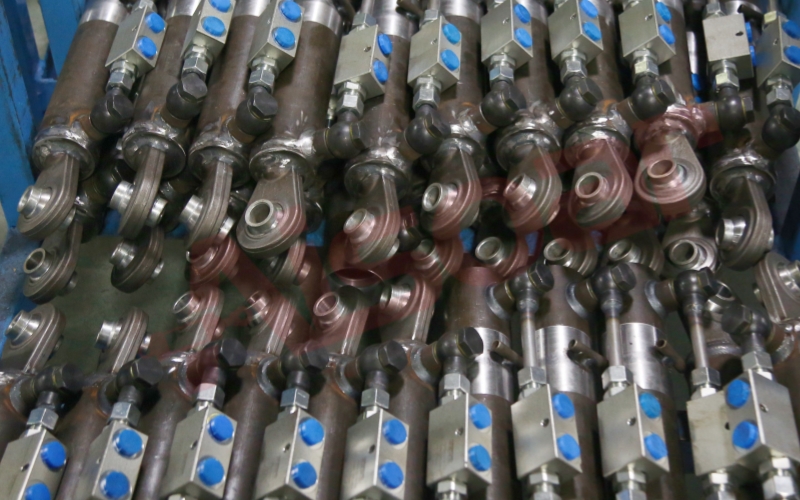

Production Processes

How We Produce Top Link Hydraulic Cylinders

Machining

Machined by turning and milling compound centers of Mazac and Dawei, the tolerance and accuracy of each parts will be good and stable.

Cleaning

Each parts of the cylinder, will be cleaned by Ultrasonic cleaner.

Welding

Welded by automatic welding machines and mechanical arm, results our good welding quality.

Inspecting

Various precision inspection equipment is applied in the quality control, so we have 100% detection capability and traceability.

Testing

1.The Salty Testing Machine test the chrome plated rod and to see the capacity for the anti-corrosion performance.

2.Making the 72 or 96 hours for the testing, we can make it longer according to customers special requirement.

Material

We Always Use Good Quality Material For Our Top Link Cylinders

Working pressure: 180 bars.
Working temperature: -25ºC – +80ºC
Speed: 0.5 m/s.
Oil: Mineral oil.
Rod: C45 f7 0.2 μm
Tube: C1020, H9.
GLAND: C1045 Steel.
PISTON: C1045 Steel.
SEALS: Hallite.
PORTS: G3/8.
Banjo Bolt：G3/8 .
Washer：G3/8
Valve: Double acting pilot check valve：

Protect the cylinder and allow it to be stopped at any position.
PAINT: Black(STD), color and other custom colors are available.
Hose：730mm length, G1/2, G3/8 Male couplers with dust cover
