KRM Hydraulic Scissor Hoist Kits for Dump Trucks

Aisoar Hydraulics supplies complete KRM Series hydraulic scissor hoist kits for light-, medium- and heavy-duty dump trucks, tipper bodies and trailers.

Model:	KRM
Application:	Dumping equipment
Capicity	3-45tons
Lead time:	2~4 weeks
Sample:	Available

Hydraulic Scissor Hoist Kit

Drawing

Data Table

FAQ

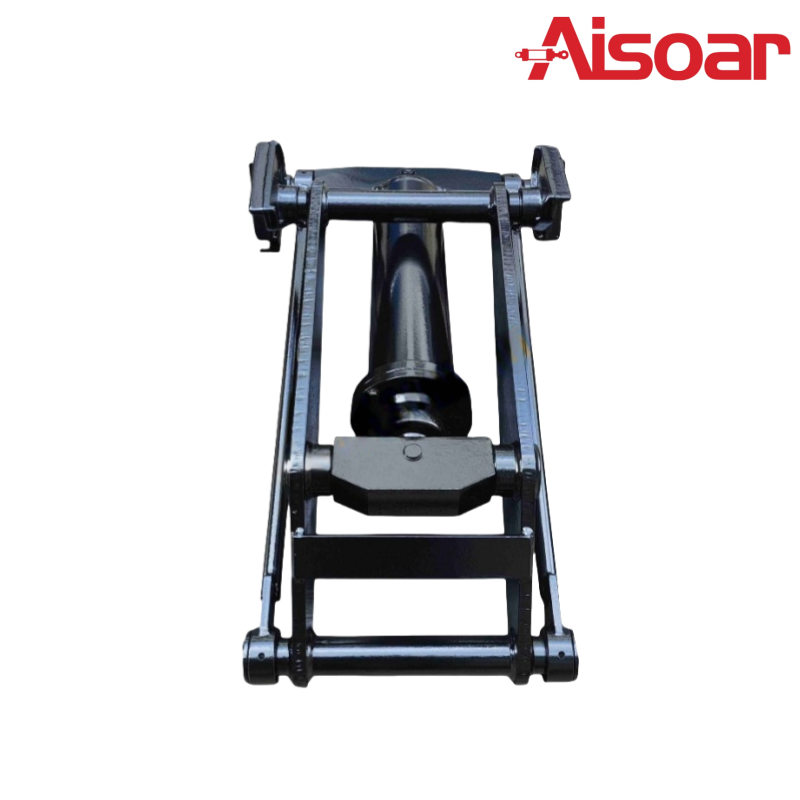

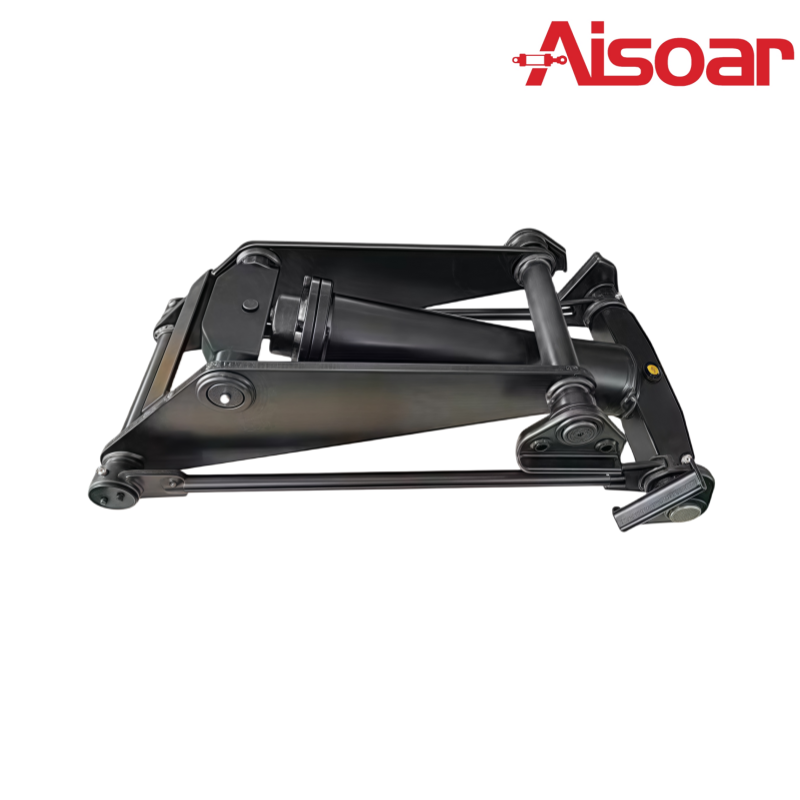

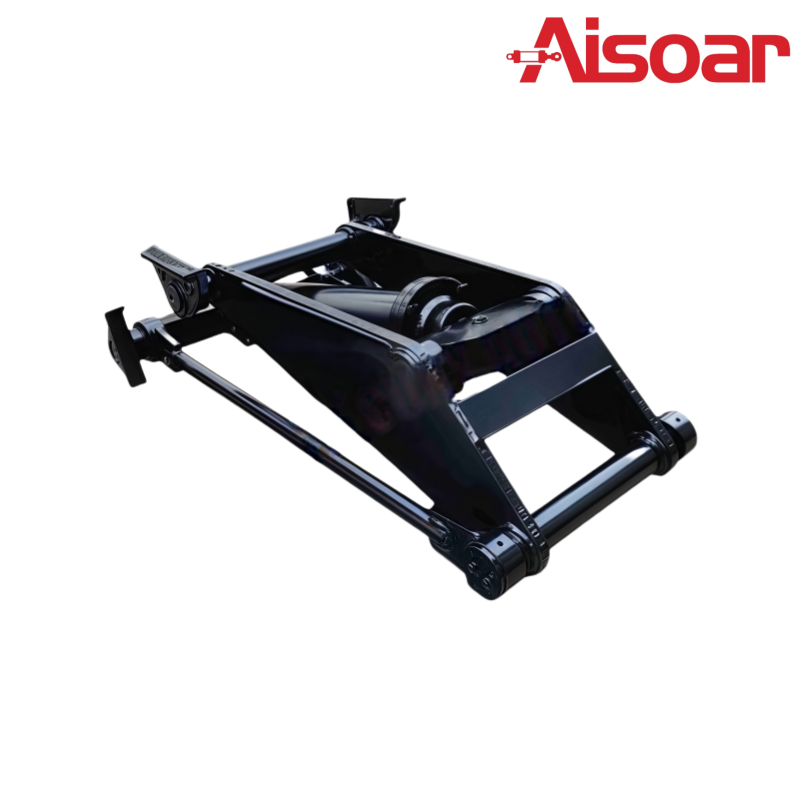

KRM Series Hydraulic Scissor Hoist Kits

We can check the Hoist Dimention (Inches) in below drawing

KRM Series Hydraulic Scissor Hoist Kits

KRM Series Hydraulic Scissor Hoist Kits Overview:

Aisoar Hydraulics supplies complete KRM Series hydraulic scissor hoist kits for light-, medium- and heavy-duty dump trucks, tipper bodies and trailers.

With lifting capacities ranging from 3 to 45 tons, the KRM Series combines a high-strength scissor mechanism, hydraulic cylinder and matched hydraulic components to provide stable lifting, smooth operation and reliable tipping performance.

A Complete Hydraulic Hoist Kit Matched to Your Vehicle

The KRM Series combines a reinforced scissor hoist mechanism with a matched hydraulic cylinder and power system.

Instead of purchasing and matching individual hydraulic components, truck body builders and trailer manufacturers can order a complete lifting kit selected according to:

Vehicle gross weight
Maximum lifting load
Dump body dimensions
Rear overhang
Load center
Mounting position
Required tipping angle
Available installation space
Hydraulic drive method

Our KRM Series offers:

Lifting capacities from 3 to 45 tons
Multiple frame lengths and mounting configurations
Matched hydraulic cylinder and gear pump combinations
Complete accessories for easier installation
Solutions for both new vehicle production and replacement projects
Customized model selection and engineering support

What Is a Hydraulic Scissor Hoist?

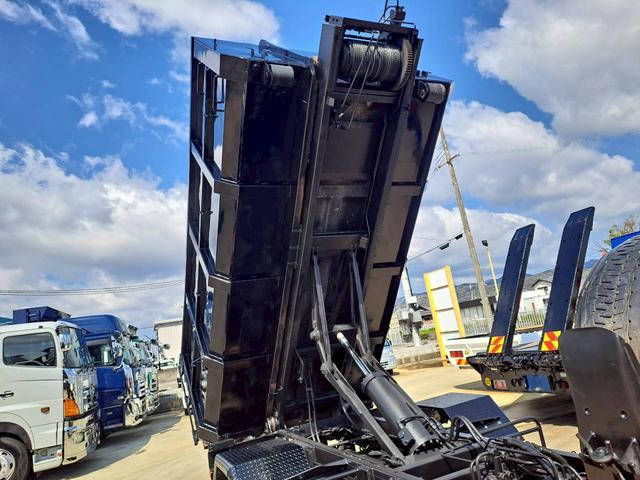

A hydraulic scissor hoist is an underbody tipping mechanism used to raise a dump truck body or trailer platform.

The hydraulic cylinder pushes the scissor structure open, converting the cylinder force and stroke into controlled lifting movement. Its compact folded design fits beneath the dump body, while the reinforced frame distributes the lifting force through the mounting points.

The KRM Series is available in different frame lengths, hydraulic cylinder sizes, strokes, pump displacements, mounting distances and tipping angles. It can be configured for light-duty trailers, medium-duty tipper trucks and heavy-duty dump bodies.

Typical Applications

KRM hydraulic scissor hoist kits are suitable for:

Dump trucks
Tipper trucks
Agricultural tipping trailers
Construction material transport vehicles
Waste collection and municipal vehicles
Landscape trailers
Utility trailers
Custom special-purpose vehicles

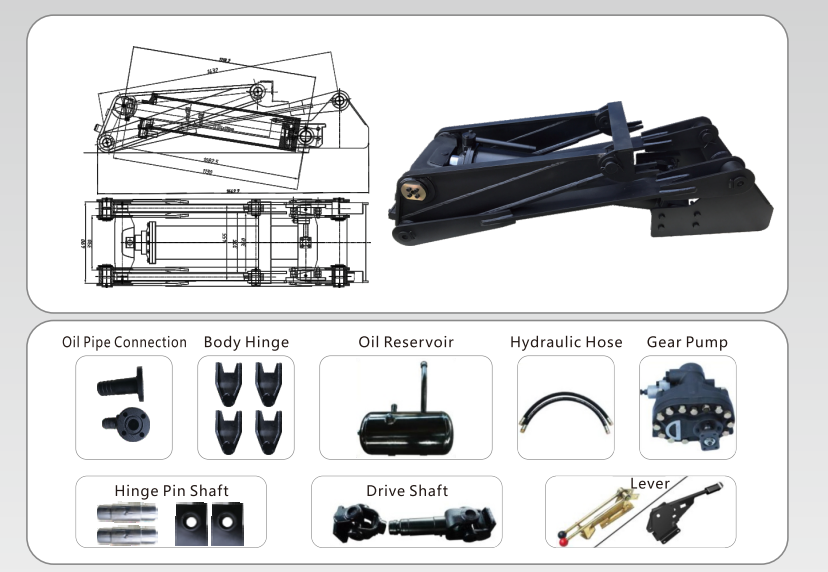

What Is Included in the KRM Hydraulic Hoist Kit?

The kit contents can be configured according to the vehicle design and hydraulic system. A typical complete KRM hydraulic scissor hoist kit includes:

Scissor hoist mechanism
Matched hydraulic cylinder
Gear pump
Hydraulic oil reservoir
Hydraulic hoses
Oil pipe connections
Body hinges
Mounting brackets
Hinge pins and shafts
Drive shaft
Operating lever
Installation accessories
Required mounting hardware

For trailers or vehicles without a suitable PTO-driven hydraulic pump, Aisoar Hydraulics can also provide a matched electric hydraulic power unit.

The voltage, motor power, pump flow, oil tank capacity, duty cycle and control method can be customized according to the application.

Key Features of KRM Hydraulic Scissor Hoist Kits

High-Strength Scissor Structure

The reinforced steel scissor arms and mounting structure provide stable lifting support for demanding truck and trailer applications.

Matched Hydraulic Components

The hydraulic cylinder size, stroke, pump displacement and working pressure are selected as one complete system, helping prevent component mismatch.

Compact Underbody Installation

The folded hoist mechanism uses the available space beneath the dump body efficiently and supports practical chassis installation.

Smooth and Controlled Lifting

The matched hydraulic flow and lifting geometry help provide steady dump body movement throughout the tipping cycle.

Multiple Lifting Capacity Options

The KRM Series covers light-, medium- and heavy-duty applications, with lifting options ranging from approximately 3 to 45 tons.

Complete Kit Supply

The hoist mechanism, hydraulic cylinder, pump, reservoir, hoses, hinges, shafts and mounting accessories can be supplied together.

Application-Based Customization

The following specifications can be adjusted according to the project:

Hoist frame dimensions
Minimum closed length
Hydraulic cylinder bore
Hydraulic cylinder stroke
Mounting distance
Pump displacement
Oil reservoir capacity
Hydraulic hose length
Control method
Maximum tipping angle
Installation accessories

Get Your Hydraulic Scissor Hoist Kit Today!

Call us or visit our website to get more information about the hydraulic cylinders you need.

FAQ

Frequently Asked Questions

We’ll try to answer some of your questions

A: Yes, we have several sizes in stock; you can tell me your specification, if the specification you need is in stock, we can ship immediately!

A:The KRM Series provides lifting options from approximately 3 to 45 tons. The appropriate capacity depends on the vehicle weight, dump body dimensions, mounting geometry, load center and required tipping angle.

A: Comprehensive technical guidance documentation and dedicated after-sales engineering support are included with all orders.

A: Yes, we provide global distribution through established freight partners with end-to-end logistics solutions.

A: All products carry 12-month comprehensive limited warranty against manufacturing defects.
