SINGLE ACTING WELDED CYLINDERS - DOUBLE PORTS

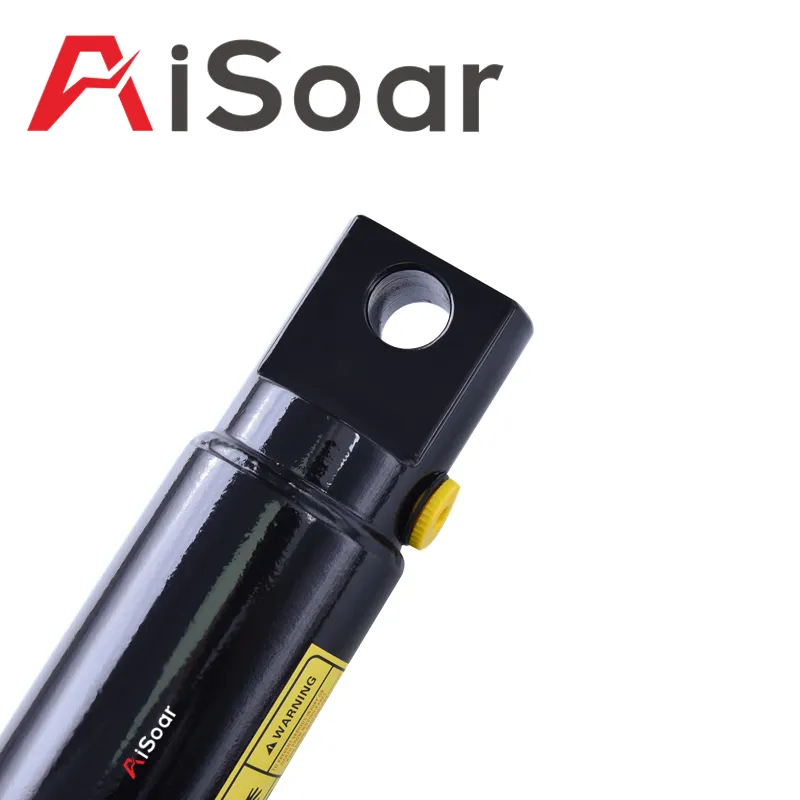

AiSoar Hydraulics supplies single-acting hydraulic cylinders with double ports and mounts with pin holes, especially used in snowplow equipment. Single-acting means this cylinder is powering up and gravity down.

Model:	ZS
PSI:	3000
Application:	Welded, Single Acting
Lead time:	3~6 weeks
Sample:	Available
Customized:	Available

ZS CYLINDERS

GET A QUOTE

SINGLE ACTING WELDED CYLINDERS - DOUBLE PORTS

Detailed Drawing

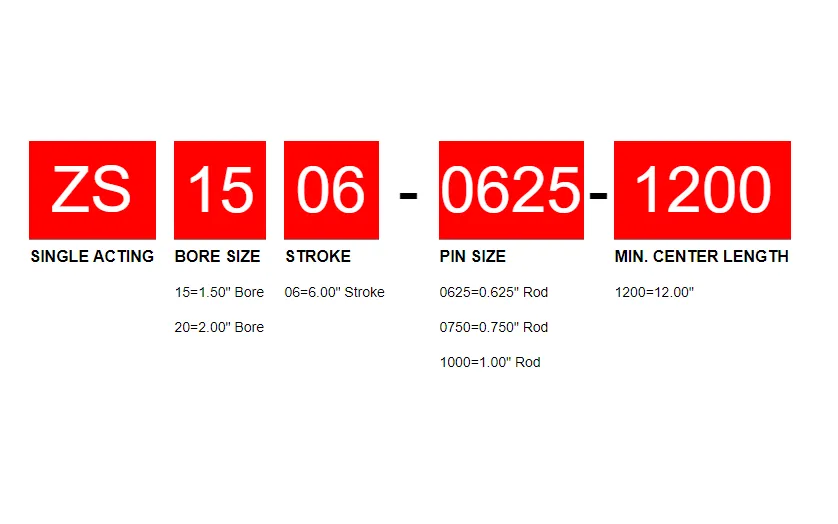

Model Code System

Single-acting Welded hydraulic Cylinder

The SINGLE ACTING WELDED CYLINDERS Model Code System is a comprehensive system of codes used to identify and specify the various components and specifications of hydraulic cylinders.

Single-acting hydraulic cylinders with double ports overview:

AiSoar Hydraulics offers single-acting hydraulic cylinders with drilled holes both on base ends and rod ends, designed for snowplow equipment. Why does the single action cylinder have two ports? You need air to get into the cylinder for it to work. It depends on which way you want the cylinder to work: push or pull. You can always get a vent to put in the empty hole that will let air in and dirt out.

SINGLE ACTING WELDED CYLINDERS Drawing

We can check the main sizes in below drawing

Dimensional Data in Inches (Miimeters)
BORE	A	B	C	D	E	G	R
1.50 (38.10)	8 (203.2)	0.25 (6.35)	1/4NPT	1.00 (25.40)	2.25 (57.15)	2.00 (50.80)	0.77 (19.56)
2.00 (50.80)	8 (203.2)	0.25 (6.35)	3/8NPT	1.25 (31.75)	2.75 (69.85)	2.25 (57.15)	1.02 (25.90)
2.50 (63.50)	8 (203.2)	0.25 (6.35)	3/8NPT	1.50 (38.10)	3.25 (82.55)	2.25 (57.15)	1.02 (25.90)
3.00 (76.20)	8 (203.2)	0.25 (6.35)	1/2NPT	1.50 (38.10)	3.75 (95.25)	2.25 (57.15)	1.02 (25.90)
3.50 (88.90)	10 (254)	0.25 (6.35)	1/2NPT	1.75 (44.45)	4.25 (107.95)	2.25 (57.15)	1.27 (32.26)
4.00 (101.60)	10 (254)	0.25 (6.35)	1/2NPT	2.00 (50.80)	4.75 (120.65)	2.50 (63.50)	1.52 (38.61)
5.00 (127.00)	12 (304.8)	0.25 (6.35)	1/2NPT	2.50 (63.50)	5.75 (146.05)	3.25 (82.55)	1.77 (44.96)

Data Table

Here we can see importants dimensional datas for SINGLE ACTING WELDED CYLINDERS

ARTICLE	MODEL	A	B	C&D	E	H	WEIGHT LBS	WEIGHT KG
ZS-2012-0625-1800	ZS2.0"X12”	17-1/4	18	3/4	2-3/16	5/8	18	8.2
ZS-2016-1000-2360	ZS2.0"X16”	22-5/8	23-3/5	11/16	2-3/4	1	21	9.5
ZS-2006-0750-1318	ZS2.0"X6”	12-5/8	13-3/16	3/4	2-3/4	3/4	13	5.9
ZS-2010-1000-1725	ZS2.0"X10”	16-5/8	17-1/4	11/15	2-3/4	1	16	7.3
ZS-2016-1250-2325	ZS2.0"X16”	22-1/2	23-1/4	7/8	2-3/4	1-1/4	20	9.1

ARTICLE	BORE INCH	STROKE INCH	A	B	C&D	E	H	WEIGHT LBS.	WEIGHT KG
ZS-1506-0625-1200	1.5	6	11-7/8	12	11/16	2	5/8	12	5.4
ZS-1510-0625-1625	1.5	10	15-7/8	16-1/4	11/16	2	5/8	14	6.3
ZS-1512-0625-1800	1.5	12	17-7/8	18	11/16	2	5/8	15	6.8
ZS-1506-0750-1300	1.5	6	12-5/8	13	11/16	2-3/4	3/4	12	5.4
ZS-1508-0750-1525	1.5	8	14-5/8	15-1/4	11/16	2-3/4	3/4	13	5.9
ZS-1510-0750-1725	1.5	10	16-5/8	17-1/4	11/16	2-3/4	3/4	14	6.3
ZS-1510-1000-1750	1.5	10	16-5/8	17-1/2	11/16	2-3/4	1	14	6.3
ZS-1510-0750-1700	1.5	10	16-5/8	17	3/4	2-3/4	3/4	14	6.3
ZS-1512-0570-1900	1.5	12	18-5/8	19	3/4	2-3/4	3/4	15	6.8
ZS-1512-1000-1937	1.5	12	18-7/16	19-3/8	3/4	2-5/8	1	15	6.8
ZS-1510-1000-1725	1.5	10	16-3/8	17-1/4	3/4	2-11/16	1	14	6.3

Get Your SINGLE ACTING WELDED CYLINDERS Fixed Today!

Call us or visit our website to get more information about the hydraulic cylinders you need.

GET A QUOTE

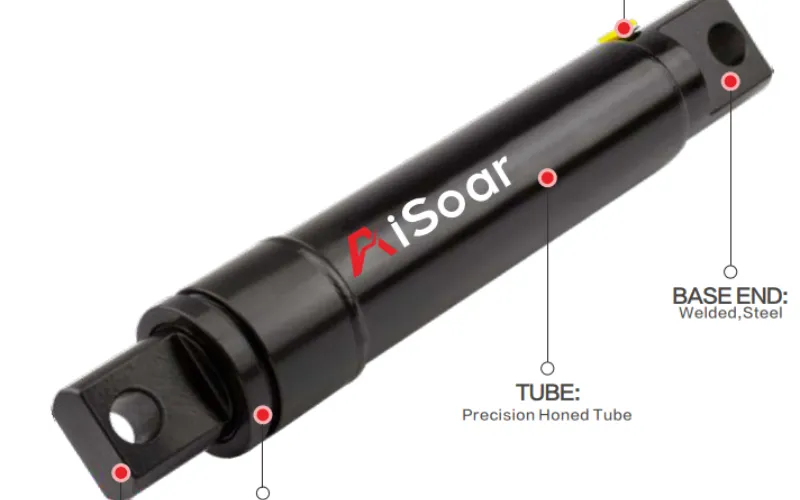

Material

We Always Use Good Quality Material For Our SINGLE ACTING WELDED CYLINDERS

ROD:Hard chrome plated.
TUBE:Honed steel, precision finished for extended seal life.
GLAND:Steel.
PISTON:Steel.
END MOUNTS:Steel.
PORTS:NPT, NPTF&SAE is optional.
SEALS:Hallite.
PAINT:black, custom colors are available.
ROD ENDS:Rod eye drilled

Production Processes

How We Produce SINGLE ACTING WELDED CYLINDERS

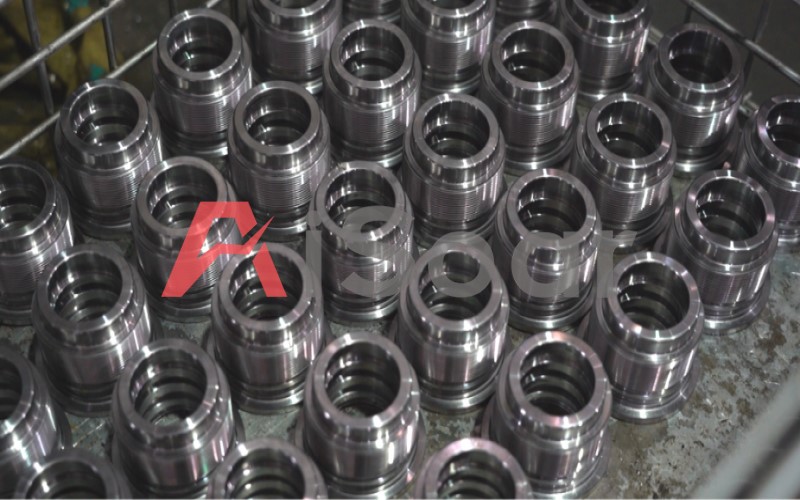

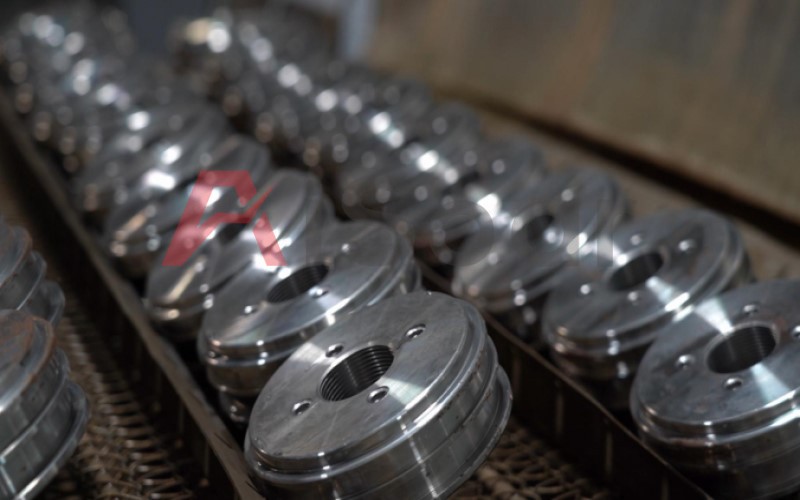

Machining

Machined by turning and milling compound centers of Mazac and Dawei, the tolerance and accuracy of each parts will be good and stable.

Cleaning

Each parts of the cylinder, will be cleaned by Ultrasonic cleaner.

Welding

Welded by automatic welding machines and mechanical arm, results our good welding quality.

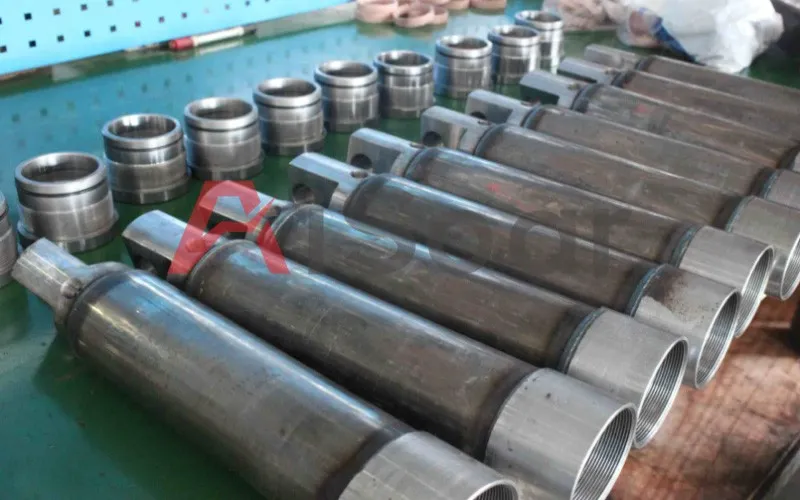

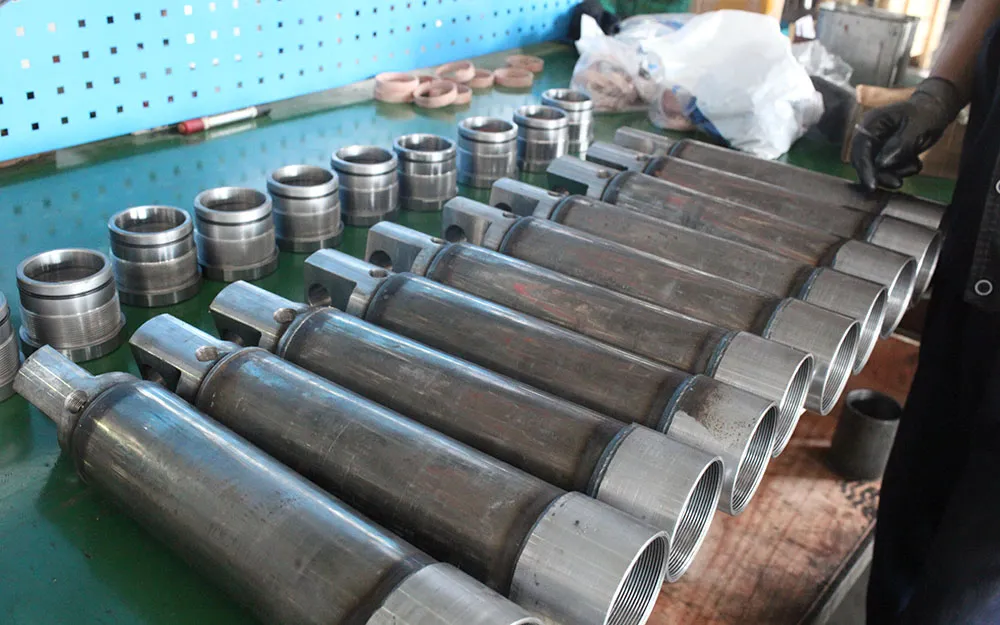

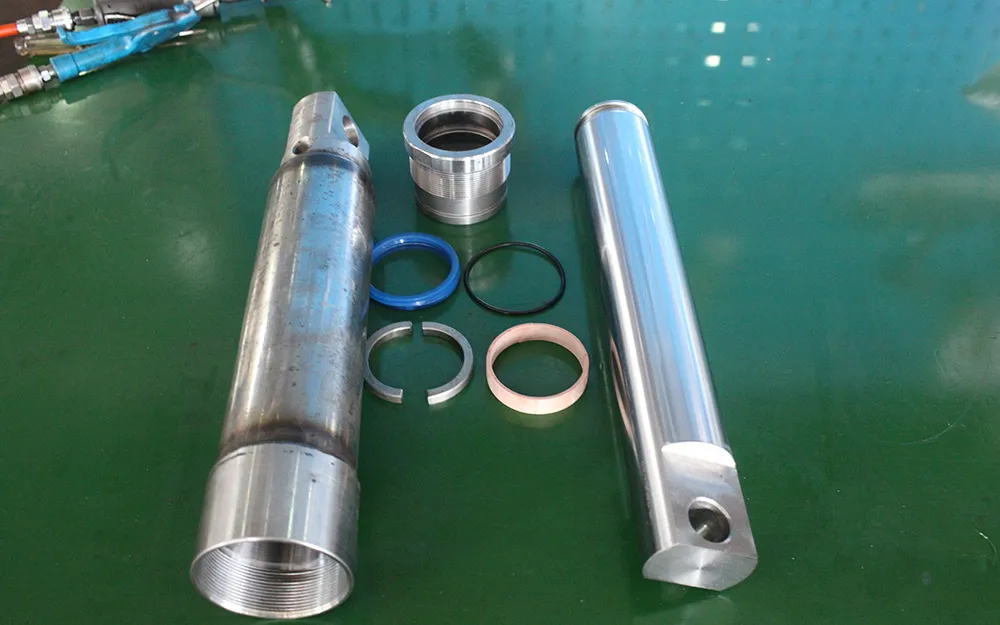

Assembling

1.The gland, which holds pressure seals and supports the rod while it moves.
2.The seals, which are fitted to the gland to stop leakage and external contamination.
3.The gland is fitted to the rod.
4.The piston is then fitted to the end of the rod.
5.A locking nut is used to hold the piston in place.
6.Piston seals are fitted to the piston to crest a seal against the cylinder wall in both single -acting and double-acting applications.
7.Position the end cap and the port for welding onto the cylinder.
8.The fully assembled rod is then inserted into the cylinder.
9.With assembly complete, the hydraulic cylinder is now ready for use.

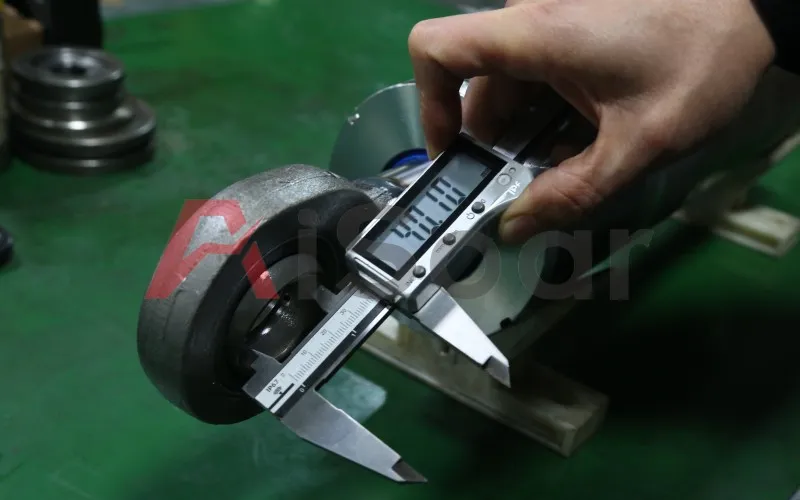

Inspecting

Various precision inspection equipment is applied in the quality control, so we have 100% detection capability and traceability.

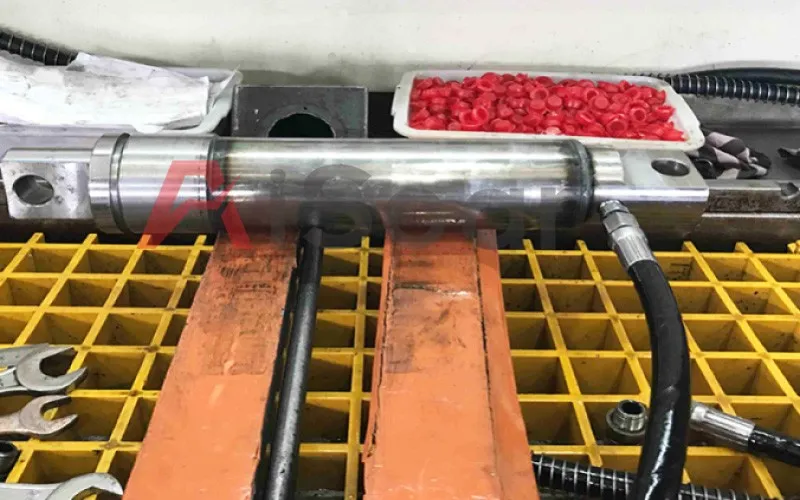

Testing

1.The Salty Testing Machine test the chrome plated rod and to see the capacity for the anti-corrosion performance.

2.Making the 72 or 96 hours for the testing, we can make it longer according to customers special requirement.

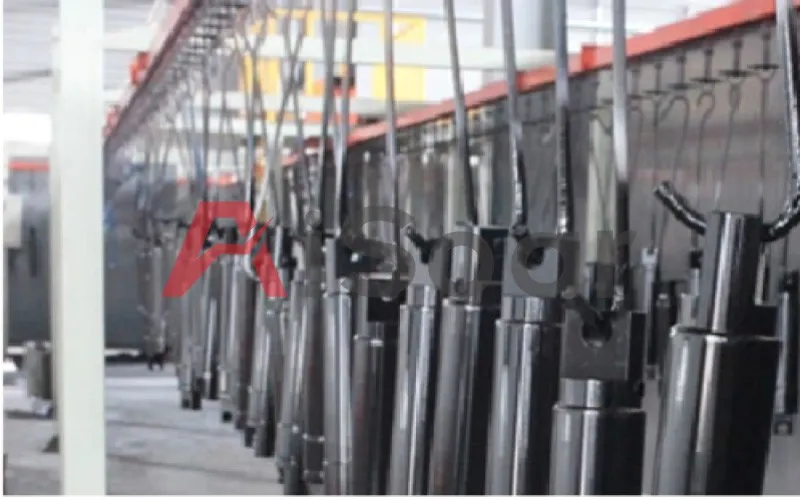

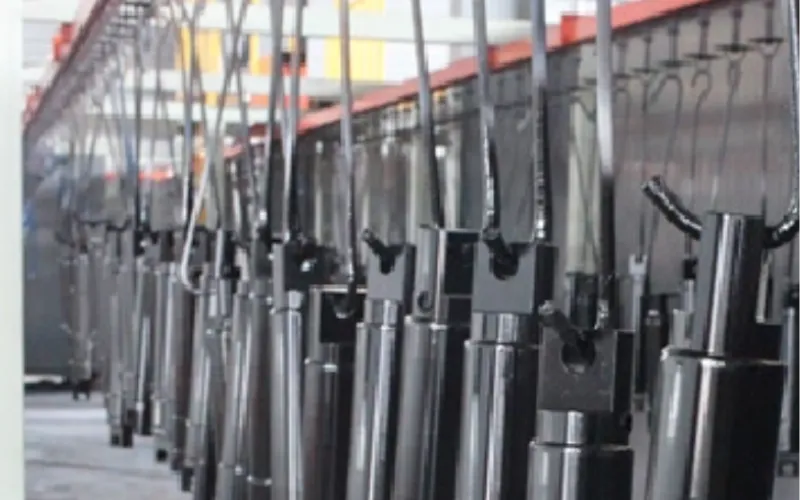

Painting

1. Painting the undercoat, normally it takes one day to dry.

2. Painting the finish painting.

We have our own standard painting color, and thickness of painting is 40 microns.

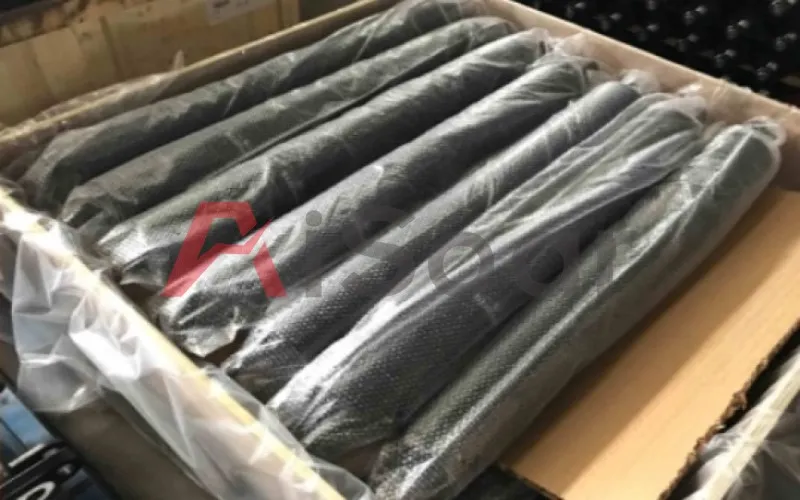

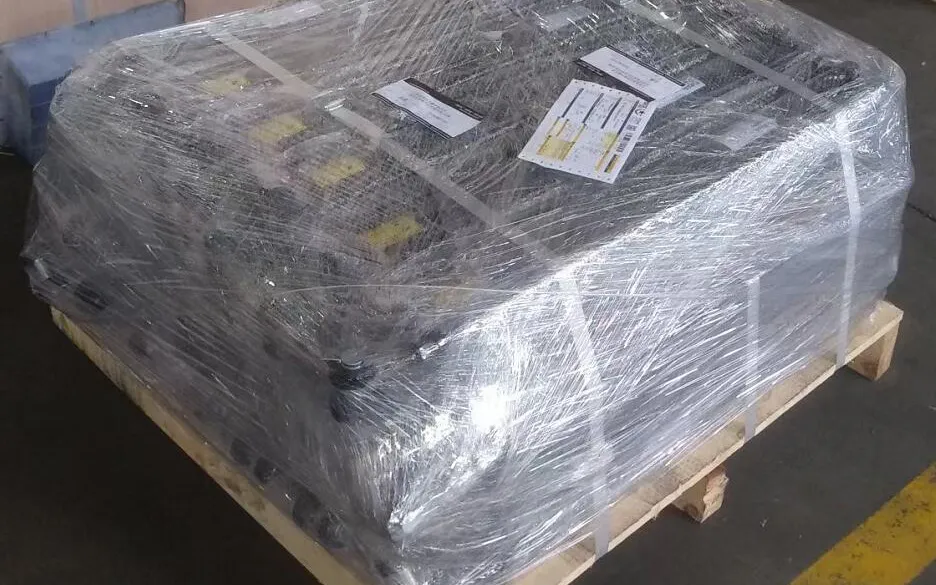

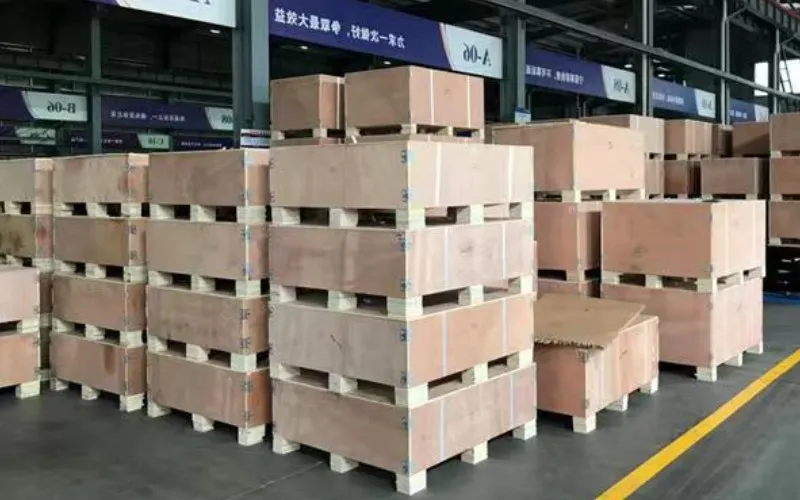

Package

Bubble bag + Wooden case(by default), Carton box is optional.

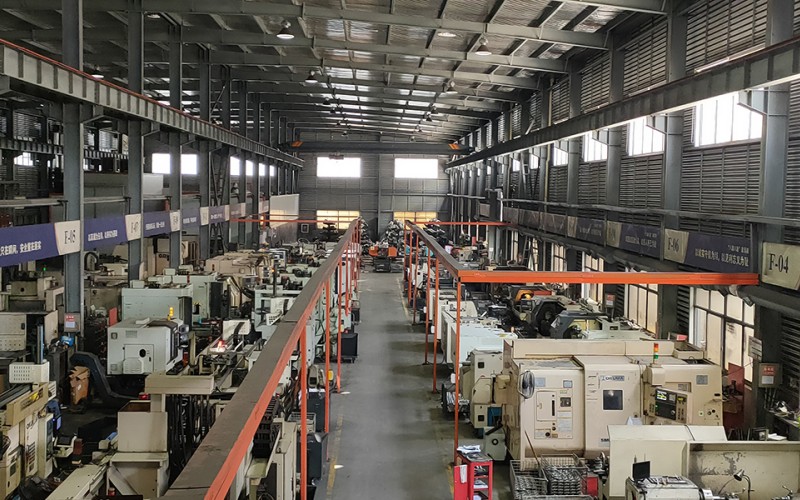

Our Factory

OEM Custom Service is Available

What Kind Of Cylinders Do You Need?

There are a handful of different types of cylinders for different industries, but no matter which type you need, even custom welded hydraulic cylinders, AiSoar can provide them.

Single-acting hydraulic cylinders guide:

For the single-acting hydraulic cylinder, the first technical parameter we need to determine is the rod size, and we would get the required force (column load) based on a specific working pressure. We also need to get the stroke, the retracted center length, and other sizes.

Single-acting hydraulic cylinders with double ports material:

ZS SNOW PLOW CYLINDERS (2500PSI)

FAQ

Frequently Asked Questions

We'll try to answer some of your questions

Q: What is the difference between double acting and single acting cylinders?own controlled by the pump or the valve or is it only one speed?

A: Double-Acting-have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting-hydraulic fluid enters through a port at one end of the cylinder, which extends the rod by means of area difference. An external force or gravity returns the piston rod.

Q: I have a drawing, could you customized cylinder as my drawing?

A: Sure. Show us the drawing, we will quote for you soonest.

Q: Could you make the cylinder which is not on the above data sheet?

A: Yes, we make and supply a wide rang of hydrualic cylinders as a proffetional manufacture, there are only some kinds of them show on the website. Freely contact us to get more information.

Aisoar Hydraulic Cylinders Catalogue

AiSoar hydraulics offers WCT series of welded hydraulic cylinders with cross tube mounted both rod ends and cap, available in a variety of bore and stroke sizes. As a standard type, cylinders' bore sizes up to 4 inches, strokes up to 48 inches with pressure ratings up to 3000PSI. For WCT series cylinders, non-standard options are available, such as customized stroke, integrated valve and stainless steel tube/rod. Single acting is optional, too.
