Hydraulic Scissor Hoist Kit is a critical power system designed for lifting and tilting the beds of dump trailers, dump trucks, and similar dumping equipment.

Related Series

Hydraulic Scissor Hoist Kit

Aisoar Hydraulics supplies precision-engineered scissor hoist delivers reliable performance in space-constrained environments, making it an optimal solution for truck and trailer applications. Featuring cylinders with reinforced sidewalls that exceed industry standards, the design ensures superior pressure resistance to prevent deformation and premature seal failure, significantly enhancing operational durability.

Model:	PH
Application:	Dumping equipment
Capicity	3-12tons
Lead time:	4~6 weeks
Sample:	Available

Drawing

Data Table

FAQ

Hydraulic Scissor Hoist Kit

We can check the Hoist Dimention (Inches) in below drawing

Hydraulic Scissor Hoist Kit

Hydraulic Scissor Hoist Kit Overview:

A Hydraulic Scissor Hoist Kit is a critical power system designed for lifting and tilting the beds of dump trailers, dump trucks, and similar dumping equipment. Its core function is to convert hydraulic pressure into powerful, controlled vertical lifting force through a scissor linkage mechanism. This enables the efficient raising of the cargo bed to dump loads. The kit typically includes the hydraulic cylinder, the hydraulic power unit, the scissor lift mechanism frame, mounting hardware, and often the necessary hydraulic hoses and fittings.

Hydraulic Scissor Hoist Kit Characteristics:

1、Scissor Lift Mechanism: Utilizes linked, folding supports in a crisscross (“scissor”) pattern. Hydraulic cylinder force extends the scissor arms, translating linear motion into significant vertical lift for the dump bed.

2、Hydraulic Power: Relies on pressurized hydraulic fluid acting on a piston within one or more cylinders to generate the massive force required to lift loaded dump beds. Connected to the hydraulic power unit.

3、High Lifting Capacity & Stability: Engineered for high tonnage loads common in dumping applications. The scissor design provides inherent stability and even lifting force distribution across the bed during operation.

4、Robust Construction: Fabricated from heavy-duty, high-grade steel to withstand extreme loads, shock, vibration, and harsh environmental conditions encountered in construction, mining, waste management, and agriculture.

5、Integrated Safety Features: Often includes safety props or locking mechanisms to secure the bed in the raised position during maintenance. Systems may incorporate pressure relief valves to prevent overloading damage.

6、Compact Design (When Retracted): The scissor mechanism folds down relatively compactly under the dump bed when not in use, maximizing ground clearance and cargo space.

Hydraulic Scissor Hoist Kit Application:

1、Dump Trailers: The primary application, enabling tipping for unloading aggregates, demolition debris, agricultural products, construction materials, snow, and more. Essential for efficient material transport and offloading.

2、Dump Trucks: Used in various sizes of dump trucks (from small single-axle to large off-road haul trucks) for raising the truck bed to dump cargo like soil, gravel, sand, rock, and asphalt.

3、Material Handling: Crucial for tasks requiring the controlled elevation and tipping of heavy loads, significantly speeding up unloading operations across multiple industries (construction, waste, mining, landscaping, agriculture).

Data Table

Here we can see Hoist Capacity (Tons)

		PH310		PH416		PH516		PH520		PH616-5		PH616-6		PH620		PH621-5		PH621-6		PH625		PH630
Dump Angle (Degrees)		45°	50°	45°	50°	45°	50°	45°	50°	45°	50°	45°	50°	45°	50°	45°	50°	45°	50°	45°	50°	45°	50°
M (Inches)		52	47	75	68	73	66	97	88	70	63	70	63	87	78	93	84	93	84	105	95	128	116
“A” (Feet)	“B” (Inches)
8	12	3.7	3.3
8	18	4.4	4
8	24	5.5	4.9
9	12	3.2	2.8
9	18	3.7	3.3
9	24	4.4	4
10	12	2.8	2.5	9.3	8.4	9.7	8.8
10	18	3.2	2.8	10.6	9.6	11.1	10
10	24	3.7	3.3	12.4	11.2	12.9	11.7
12	12			7.4	6.7	7.7	7	10.3	9.3	8.7	7.8	12.6	11.3
12	18			8.3	7.5	8.6	7.8	11.4	10.4	9.7	8.7	14	12.6
12	24			9.3	8.4	9.7	8.8	12.9	11.7	10.9	9.8	15.7	14.1
14	12			6.2	5.6	6.5	5.8	8.6	7.8	7.2	6.5	11.5	10.3	11.7	10.5
14	18			6.8	6.1	7	6.4	9.3	8.5	7.9	7.1	12.6	11.3	12.8	11.4
14	24			7.4	6.7	7.8	7	10.3	9.3	8.7	7.8	14.4	13.3	14	12.6
16	12							7.3	6.7	6.2	5.6	9	8.1	10	9	8.3	7.5	11.9	10.7	11.3	10.2
16	18							7.9	7.2	6.7	6	9.6	8.7	10.8	9.7	8.9	8	12.8	11.6	12.1	11
16	24							8.6	7.8	7.2	6.5	6.5	9.4	11.7	10.5	9.6	8.7	13.9	12.5	13.2	11.9
18	12													8.8	7.8	7.2	6.5	10.4	9.4	9.9	8.9	13.5	12.2
18	18													9.3	8.4	7.7	7	11.1	10	10.5	9.5	14.4	13.1
18	24													10	9	8.3	7.5	11.9	10.7	11.3	10.2	15.4	14
20	12															6.4	5.8	9.2	8.3	8.8	7.9	12.5	10.9
20	18															6.8	6.1	9.8	8.8	9.3	8.4	12.7	11.5
20	24															7.2	6.5	10.4	9.4	9.9	8.9	13.5	12.2
24	12																					9.8	8.9
24	18																					10.3	9.3
24	24																					10.8	9.8

Get Your Hydraulic Scissor Hoist Kit Today!

Call us or visit our website to get more information about the hydraulic cylinders you need.

FAQ

Frequently Asked Questions

We’ll try to answer some of your questions

A: Yes, we have several sizes in stock; you can tell me your specification, if the specification you need is in stock, we can ship immediately!

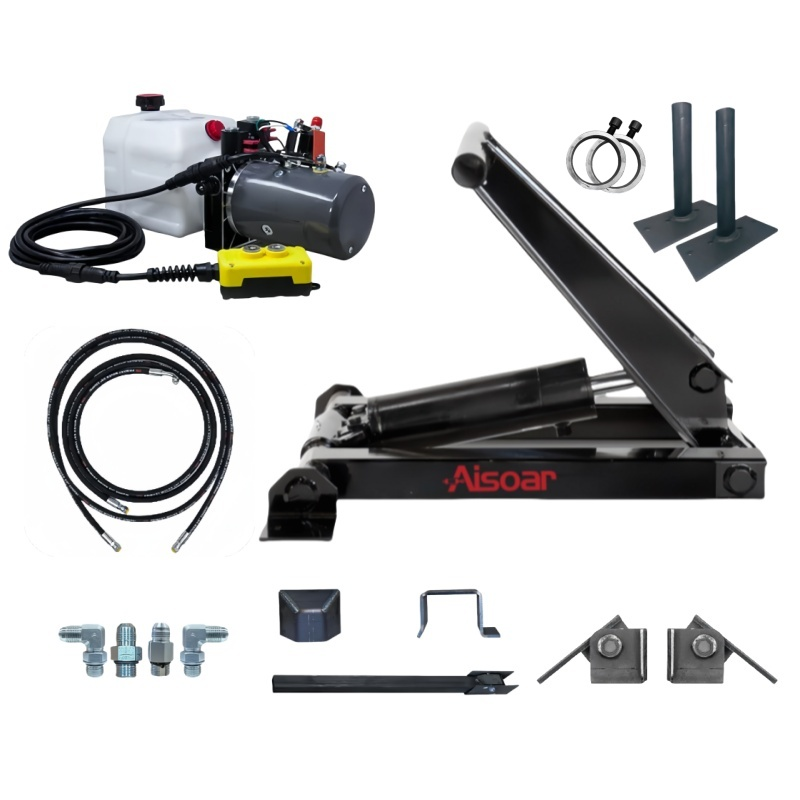

A:The Hoist Kit includes the Hoist Assembly、Hydraulic Power Unit、Hydraulic Hose、Hydraulic Fittings、Safety Arm、Safety Arm Cup、Safety Arm Storage Bracket、Hinge Assembly、Locking Collars.

A: Comprehensive technical guidance documentation and dedicated after-sales engineering support are included with all orders.

A: Yes, we provide global distribution through established freight partners with end-to-end logistics solutions.

A: All products carry 12-month comprehensive limited warranty against manufacturing defects.
