STS (Ship-to-Shore) cranes are essential equipment in container terminals, used for loading and unloading containers between vessels and the dock. To ensure reliable operation under heavy loads and harsh marine conditions, hydraulic cylinders are widely used in various crane systems.
Common Hydraulic Cylinders Used on STS Cranes

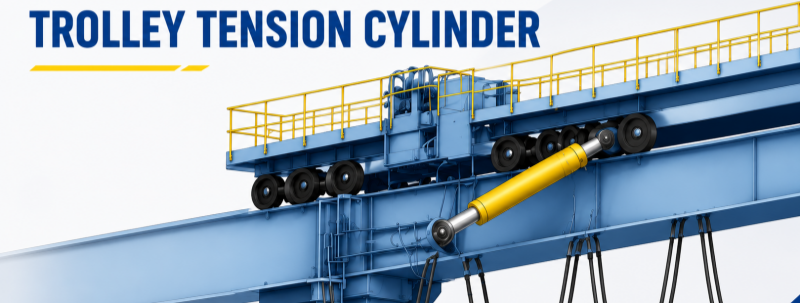

Trolley Tension Cylinder
The trolley tension cylinder maintains proper wire rope tension within the catenary trolley system. It helps improve trolley stability, reduce vibration, and extend wire rope service life.

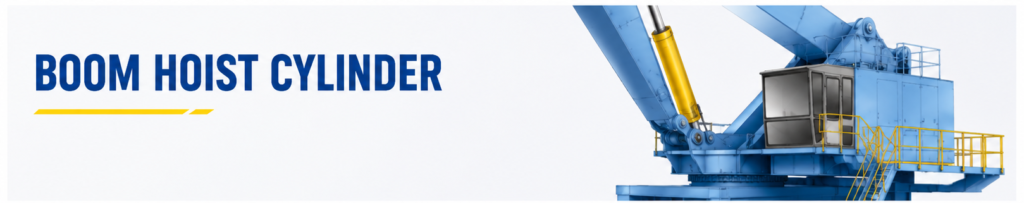

Boom Hoist Cylinder
Boom hoist cylinders assist with boom positioning and support safe crane operation during maintenance and severe weather conditions.

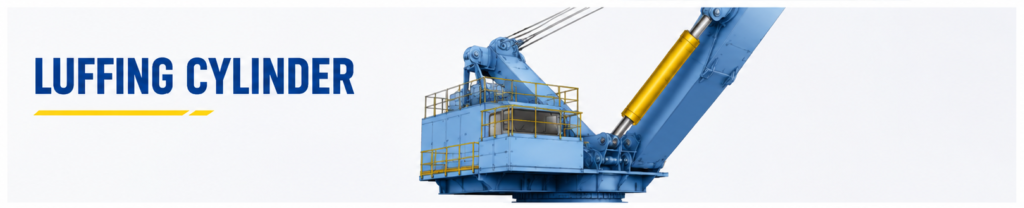

Luffing Cylinder
Luffing cylinders adjust the boom angle, allowing the crane to handle different vessel sizes and operating requirements.

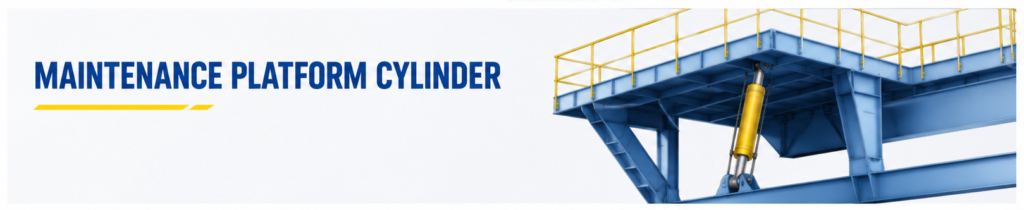

Maintenance Platform Cylinder
These cylinders are used on maintenance platforms and access systems, helping operators safely reach inspection and service areas.
Common Challenges
Hydraulic cylinders used on STS cranes operate under demanding conditions, including:
- Heavy-duty operating cycles
- High dynamic loads and vibration
- Marine corrosion and salt spray exposure
- Seal wear and hydraulic leakage
- High maintenance requirements
Selecting reliable replacement cylinders is critical for minimizing downtime and ensuring long-term performance.
AiSoar Hydraulic Cylinder Solutions
AiSoar provides OEM and replacement hydraulic cylinders for port equipment applications.
Available options include:
- Custom bore and stroke sizes
- Various mounting configurations
- Heavy-duty sealing systems
- Corrosion-resistant surface treatments
- Marine-duty bearing solutions
All cylinders can be manufactured according to customer drawings or OEM specifications.

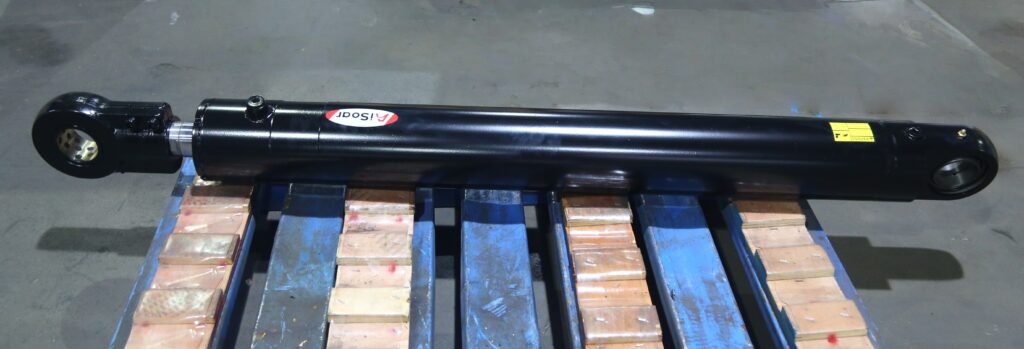

Project Case: ZPMC STS Crane Trolley Tension Cylinder
AiSoar supported a hydraulic cylinder tender project for 65T ZPMC STS cranes at Colombo Port, Sri Lanka.
Cylinder Specifications
| Item | Specification |
|---|---|
| Bore Diameter | 100 mm |
| Rod Diameter | 56 mm |
| Stroke | 800 mm |
| Operating Pressure | 21 MPa |
AiSoar Key Design Highlights
- Parker Seal Model Verification
We identified and matched Parker seal models according to the provided drawing and working parameters, ensuring sealing integrity under 21 MPa pressure. - Pressure & Joint Bearing Confirmation
We validated cylinder pressure rating and finalized detailed specifications for eye-end spherical bearing structures to ensure safe operation in dynamic crane conditions. - Tender Documentation Support
We provided complete supporting documents required by bidding standards, including:- Warranty certificate
- Certificate of authenticity (genuine product declaration)
- CE certificate
The solution successfully met the customer’s technical and compliance requirements while improving long-term reliability.
Why Choose AiSoar?
- OEM & Custom Manufacturing
- Engineering Support
- Strict Quality Control
- Fast Delivery
- Global Export Experience
Request a Quote
Looking for replacement or custom hydraulic cylinders for STS cranes or port equipment?
Contact AiSoar Hydraulics for engineering support and customized hydraulic cylinder solutions.
