Hydraulic Cylinder Solutions for Water Fluid Systems

12th June 2026

Water fluid systems are widely used in water treatment facilities, pumping stations, irrigation equipment, water control gates, and industrial fluid management applications. These systems require reliable actuators to control movement, regulate flow, and ensure long-term operational stability.

Hydraulic cylinders play a critical role in water fluid systems by providing the force needed to operate gates, valves, lifting mechanisms, and other control equipment. However, because these applications often involve exposure to water, humidity, and corrosive environments, hydraulic cylinders must be specially designed to ensure durability and reliable performance.

Hydraulic cylinder solutions for water systems

Table of Contents

Common Challenges in Water Fluid Systems

Hydraulic cylinders used in water-related applications often face several challenges:

Corrosion caused by long-term exposure to water and humidity
Seal wear under frequent operating cycles
Difficulty maintaining stable and synchronized movement
High maintenance costs due to rust and component degradation
Replacement requirements when original drawings are unavailable

For OEM manufacturers and maintenance contractors, finding a hydraulic cylinder that matches the original installation dimensions while improving durability can be a significant challenge.

AiSoar Common Hydraulic Cylinders Used in Water Fluid Systems

Gate Control Cylinders

Used for opening and closing sluice gates, flood control gates, and water regulation equipment.

Valve Actuation Cylinders

Provide reliable actuation for large industrial valves used in water treatment and fluid transfer systems.

Screen Lifting Cylinders

Used in filtration and screening systems to lift, position, or maintain screening equipment.

Double-Rod Hydraulic Cylinders

Suitable for applications requiring synchronized movement, balanced force output, or special mechanical linkage systems.

Hydraulic cylinders in water fluid systems supplier

Project Case: Custom Double-Rod Hydraulic Cylinder for Water Fluid Control System

Project Information

Item	Specification
Project Name	Double-Rod Hydraulic Cylinder for Water Fluid Control System
Application	Water Fluid Control System
Date	July 2023
Working Pressure	14 MPa
Bore Diameter	63 mm
Rod Diameter	35 mm
Stroke	122 mm
Cylinder Type	Double-Rod Hydraulic Cylinder

Project Background

A customer required a customized double-rod hydraulic cylinder for a water fluid control system. The application involved two hydraulic cylinders connected end-to-end through eye-end mountings, allowing synchronized extension and retraction from both sides.

The original cylinders had been operating in a water-based environment where corrosion resistance was critical. However, the customer no longer had complete engineering drawings and could only provide a hand sketch showing the installation structure and connection method.

The project required not only reproducing the original design but also improving the cylinder’s suitability for long-term operation in a water fluid environment.

Customer Requirements

The customer requested:

A double-rod hydraulic cylinder matching the original design
Identical mounting dimensions and connection method
End-to-end cylinder connection structure
Corrosion-resistant materials suitable for water exposure
Reliable sealing performance
Direct replacement without equipment modification

AiSoar Solution

Based on the customer’s sketch and technical requirements, the AiSoar engineering team developed a customized hydraulic cylinder solution.

Understanding the Customer Sketch：Without complete drawings, our engineers carefully analyzed the customer’s hand sketch to determine all critical dimensions, mounting interfaces, and connection details.

Material Selection for Water Applications：To improve durability in the water fluid system, corrosion-resistant materials and suitable surface treatments were selected for the piston rods and key components.

Replicating the Original Connection Structure：The two cylinders were designed to connect exactly as the original equipment, ensuring the same movement characteristics and installation method.

Customized Manufacturing：All dimensions were manufactured according to the customer’s requirements, including:

Bore diameter: 63 mm
Rod diameter: 35 mm
Stroke length: 122 mm
Eye-end mounting configuration
Double-rod structure

This allowed the cylinders to integrate directly into the existing equipment.

Project Results

After installation, the customized hydraulic cylinders performed successfully within the customer’s water fluid control system.

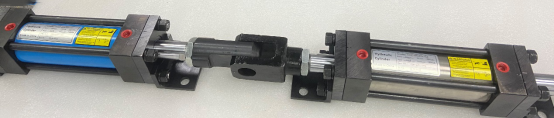

Double-rod hydraulic cylinder

Achieved Results

Direct replacement of the original cylinders
Stable and synchronized cylinder movement
Reliable operation at 14 MPa working pressure
Improved corrosion resistance
Reduced maintenance requirements
Long-term operational reliability

The customer was satisfied with both the engineering support and the final product performance.

Why Choose AiSoar for Water Fluid System Hydraulic Cylinders?

AiSoar specializes in custom hydraulic cylinder manufacturing for demanding industrial applications.

Our capabilities include:

OEM and custom hydraulic cylinder production
Design based on drawings, samples, or sketches
Corrosion-resistant cylinder solutions
Engineering support for special applications
Pressure and performance testing
Global export experience

Whether you need a replacement cylinder or a fully customized hydraulic solution for water fluid systems, AiSoar can help deliver reliable and cost-effective products tailored to your application.
