A box blade is one of the most versatile implements used on tractors for grading, leveling, and maintaining roads or driveways. However, getting the best performance from a box blade depends heavily on proper implement angle control. This is where a hydraulic top link becomes a valuable upgrade.
Unlike a manual top link that requires the operator to stop and make adjustments by hand, a hydraulic top link allows real-time changes from the tractor seat. Whether you’re cutting, carrying material, or smoothing a surface, proper top link adjustment can dramatically improve efficiency and results.
Why a Hydraulic Top Link Improves Box Blade Performance
The angle of a box blade determines how aggressively it engages the ground.
With a traditional manual top link, changing the cutting angle requires stopping the tractor and physically adjusting the link length.
A hydraulic top link allows you to:
- Adjust blade pitch instantly
- Improve grading accuracy
- Reduce operator fatigue
- Increase productivity
- Adapt quickly to changing terrain
For operators maintaining gravel roads, farm lanes, or construction sites, this flexibility can save significant time.

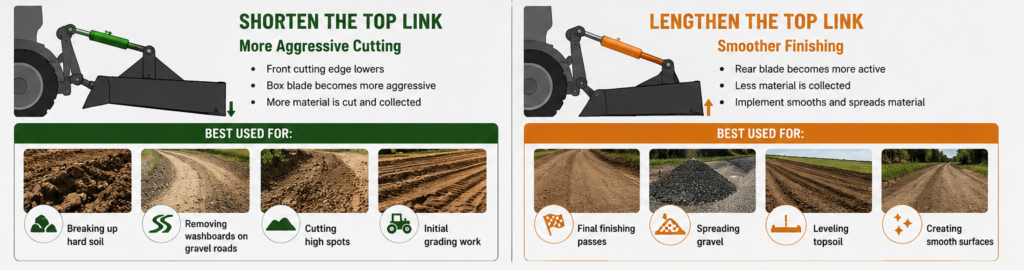

Understanding Top Link Adjustment
| Adjustment Direction | Ground Engagement | Material Movement | Surface Finish | Recommended Applications |
| Shorten Top Link | High | Aggressive Cutting | Rough to Medium | Hard soil penetration, driveway repair, cutting high spots, initial grading |
| Lengthen Top Link | Low to Moderate | Material Spreading | Smooth Finish | Final grading, gravel spreading, topsoil leveling, surface finishing |
Recommended Hydraulic Top Link Sizes
The correct cylinder size depends on your tractor’s hitch category.
| Hitch Category | Common Tractor HP | Recommended Cylinder |
|---|---|---|
| Category 1 | 20–50 HP | 2″ Bore × 8″ Stroke |
| Category 2 | 50–100 HP | 2.5″ Bore × 8″ Stroke |
| Category 3 | 100+ HP | 3″ Bore × 8″ Stroke |
Always verify the closed and extended lengths required by your tractor and box blade combination.
Common Box Blade Applications
Driveway Maintenance：Hydraulic top links make it easier to remove potholes, redistribute gravel, and create a smooth driving surface.
Land Leveling：Operators can quickly adjust the blade angle while moving across uneven terrain.
Road Building： When constructing farm roads or access paths, frequent angle changes are necessary for proper drainage and grading.
Construction Site Preparation：A hydraulic top link allows precise control during site cleanup and surface preparation.
Tips for Maximum Efficiency
Start Aggressive, Finish Smooth
Begin grading with a shortened top link to cut material effectively.
As the surface becomes level, gradually lengthen the top link for smoothing.
Make Small Adjustments
Even minor cylinder movements can significantly affect blade performance.
Watch Material Flow
Observe how material moves through the box blade and adjust accordingly.
Use Float Position When Appropriate
Some tractors allow the hydraulic circuit to float, helping the blade follow ground contours naturally.
Common Mistakes to Avoid
Over-Cutting
Running with an excessively shortened top link can cause the blade to dig too deeply.
Excessive Cylinder Stroke
Using more adjustment than necessary often reduces grading consistency.
Ignoring Terrain Changes
Different soil conditions require different blade angles.
Incorrect Cylinder Size
A hydraulic top link that is too short or too long may limit implement performance.
Why Hydraulic Top Links Are Popular Among Box Blade Operators
Many tractor owners consider the hydraulic top link to be one of the most valuable three-point hitch upgrades available. The ability to control implement angle without leaving the seat improves productivity, comfort, and grading precision.
Whether maintaining a gravel driveway, leveling farmland, or preparing construction sites, a hydraulic top link helps operators achieve professional-quality results with less effort.
Conclusion
A box blade performs best when its cutting angle can be adjusted quickly and accurately. A hydraulic top link provides that control, allowing operators to switch instantly between aggressive cutting and smooth finishing.
For anyone who regularly uses a box blade, upgrading to a hydraulic top link is one of the simplest ways to improve efficiency, grading quality, and overall tractor productivity.
