AiSoar Hydraulics provides standard hydraulic testing machines and customized hydraulic test benches to meet customers’ specific requirements.
Related Series
China Hydraulic Test Bench Manufacturers and Suppliers
AiSoar Hydraulics provides standard hydraulic testing machines and customized hydraulic test benches to meet customers’ specific requirements. The hydraulic test bench is quite useful for the manufacture of hydraulic products. For the manufacturers, before the hydraulic products are delivered to customers, we have to guarantee they are perfect without seal leaks; they have gone through the test procedure by the testing machine. This testing step is essential. With a 3000 PSI testing capacity, all cylinder repairs can be guaranteed not to fail when reinstalled in the field. The hydraulic products will work perfectly, which means greater profit, satisfied customers, and long-term customer loyalty.
| Reservoir Capacity: | Max. 1000L |
|---|---|
| Optional Accessories: | Pressure Sensor, Proportional valve, |
| Along with worktable: | Integrated Worktable, Separate Worktable; two types for choice |
| Digital display panel: | Available |
| Max. Pressure: | 500 Bar |
| Software system: | Available |
| Horse Power: | 3×10 HP / 3×7.5kW |
| Hydraulic Pump Capacity: | 3x23LPM at 50HZ |
| Power Required: | 50/60HZ/3Ph,as your required |
China Hydraulic Test Bench Manufacturers and Suppliers

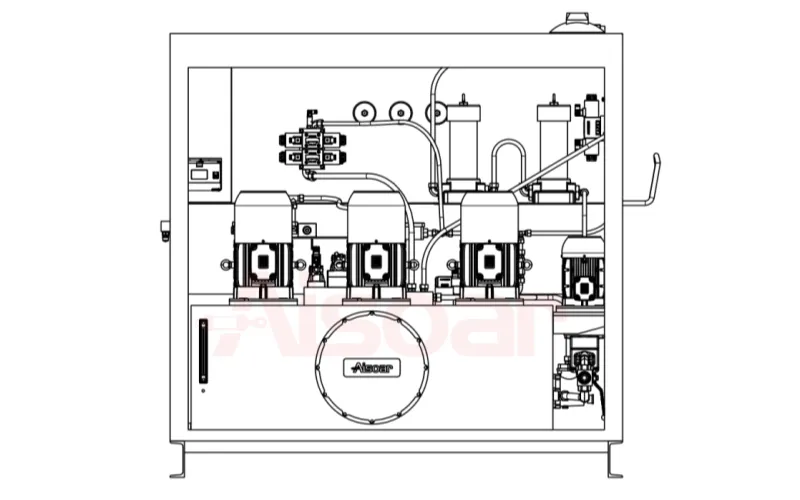

Detailed Drawing
PLC HIGH-END Hydrualic Test Bench
PLC Hydrualic Test Bench
This test bench has strong functionality and is ideal for producer of hydraulic products. The type of worktable is optional, integrated or one separate worktable for placing the hydraulic products as required.
| Max.Pressure | 250Bar, 315Bar is optional | Horse Power | 3×10 HP / 3×7.5kW | Hydraulic Pump Capacity | 3x23LPM at 50HZ |
| Power Required | 50/60HZ/3Ph,as your required | Reservoir Capacity | 2x250L | Optional Accessories | Pressure Sensor Proportional valve |
Software Hydrualic Test Bench
Software for hydraulic test benches is a crucial component in managing and operating these complex systems. It plays a significant role in automating processes, collecting data, and ensuring accurate testing of hydraulic components.
AiSoar has developed software specifically for cylinder test benches. The test results of each tested cylinder can be encrypted, stored, evaluated, and exported through the software; it can also be used for data comparison, pass rate statistics, and productivity accounting, etc. Meanwhile, the operation of the test bench can be remotely monitored through the software, including the pressure, flow rate, liquid level, temperature, and other data.
| Max.Pressure | Max. 500 Bar | Horse Power | 3×5.5 kW | Hydraulic Pump Capacity |
| Power Required | 50/60HZ/3Ph,as your required | Reservoir Capacity | Max. 1000 | Optional Accessorie |
TEST PROCEDURE
SOFTWARE HYDRAULIC TEST BENCH
Feature
Hydraulic Test Bench Feature
Features:
① Test three cylinders at the same time
② High pressure hoses with quick disconnects
③ Hose storage rack
④ Nine Pressure gauges visual Pressure and Flow LCD display
⑤ Quick disconnect adaptors
⑥ Shop air adapter for oil removal after testing
⑦ PLC control with operation panel
⑧ Independent circulating cooling circuit
⑨ Differential pressure sensor, Level relay, Temperature Sensor
Software (Optional)
① Wirelss remote control (remote operation)
②Integrated Software Functions
Get Your PLC Hydrualic Test Bench Today!
Call us or visit our website to get more information about the hydraulic testing bench you need.
Get A Quote
Manufacturing
OEM Hydraulic Test Bench
This test bench has strong functionality and is ideal for producers of hydraulic products. The type of worktable is optional, integrated or one separate worktable for placing the hydraulic products as required. It should be possible to store the data on the computer and print the test report from the software system.
1、Two types of worktable for your choice
Which type of worktable is ideal for you? How do I choose the best solution? It is defined by the dimensions of the hydraulic cylinders to be tested. To ensure the testing bench works at maximum efficiency, integrated type worktable is suitable for placing the comparatively small and short hydraulic cylinder because the limited width of the worktable should not only be comfortable for operating, but it is also better to place more than two hydraulic cylinders at the same time. A separate-type worktable is the ideal solution for testing more than 2 pieces of the bigger and longer hydraulic cylinder at the same time because it can be designed to a large size.
2、Software system is optional
It should be possible to store the data on the computer and print the test report from the software system.
It can be encrypted, stored, evaluated, and exported through the software; it can also be used for data comparison, pass rate statistics, and production efficiency accounting.
At the same time, the software can monitor the operation of the test bench remotely, including pressure, flow, liquid level, temperature and other data.
Report
Software Hydraulic Test Bench Report
Test Bench Monitor
Software PLC Report
Our Factory
Our Factory
FAQ
Frequently Asked Questions
We’ll try to answer some of your questions
A: Sure, we have the ability to supply customiezed service. We can design and manufacture the related hydraulic system according your requirement.
A: Definitely yes, we have our own factory. We would like to show you videos via WhatsApp or Wechat.
A: The delivery time of hydraulic testing bench is 1-2 month.
A: Yes！of course! We provide one year warranty period.
