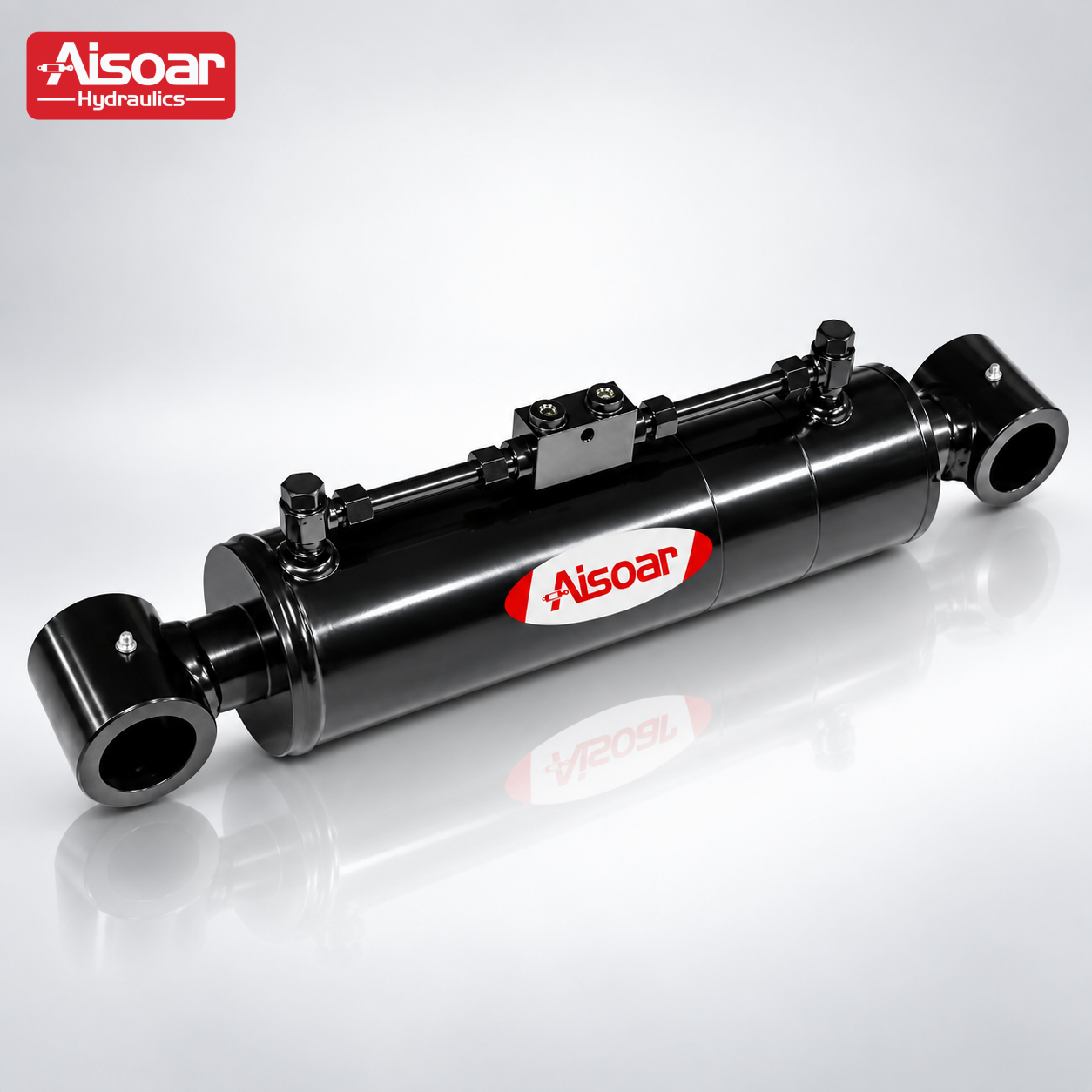

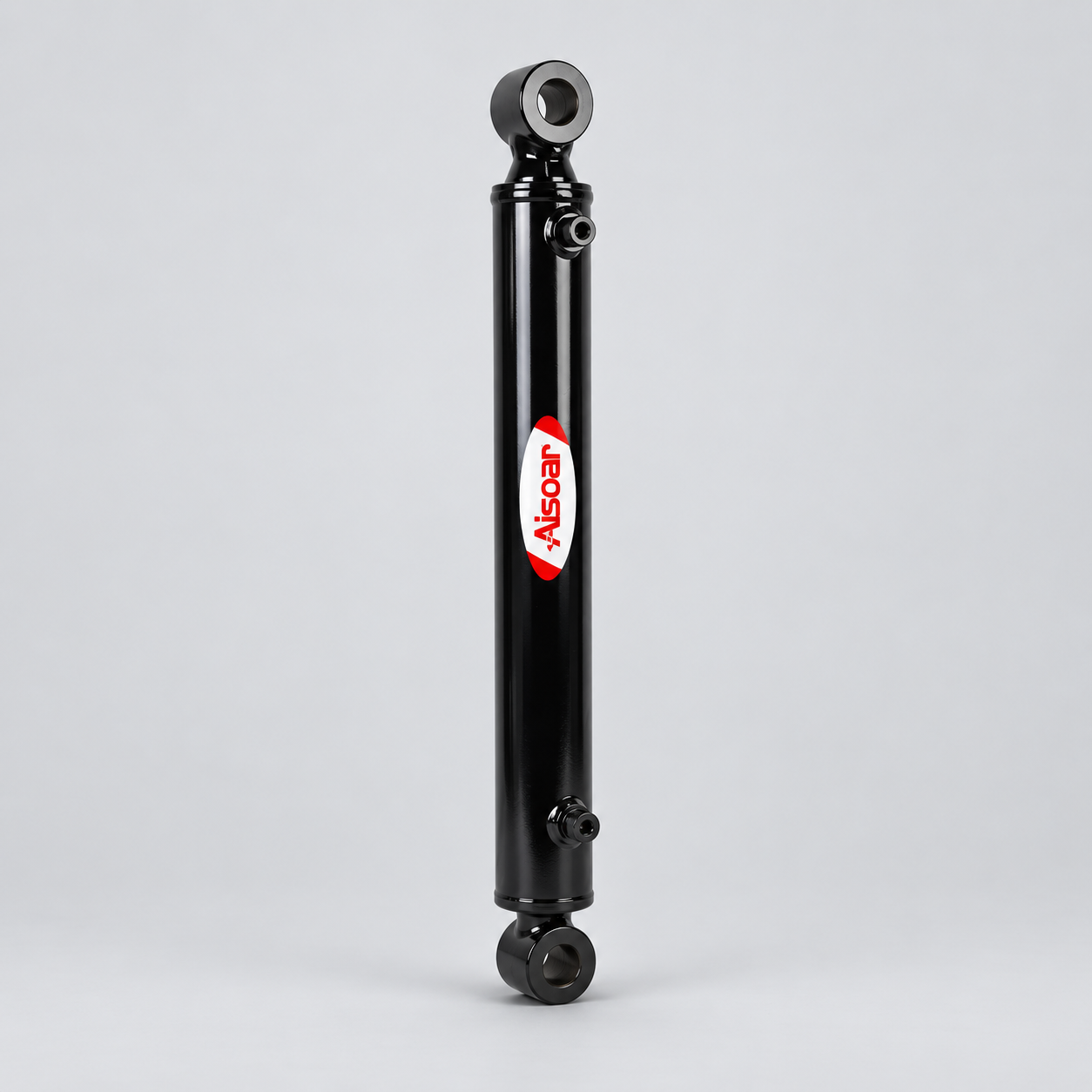

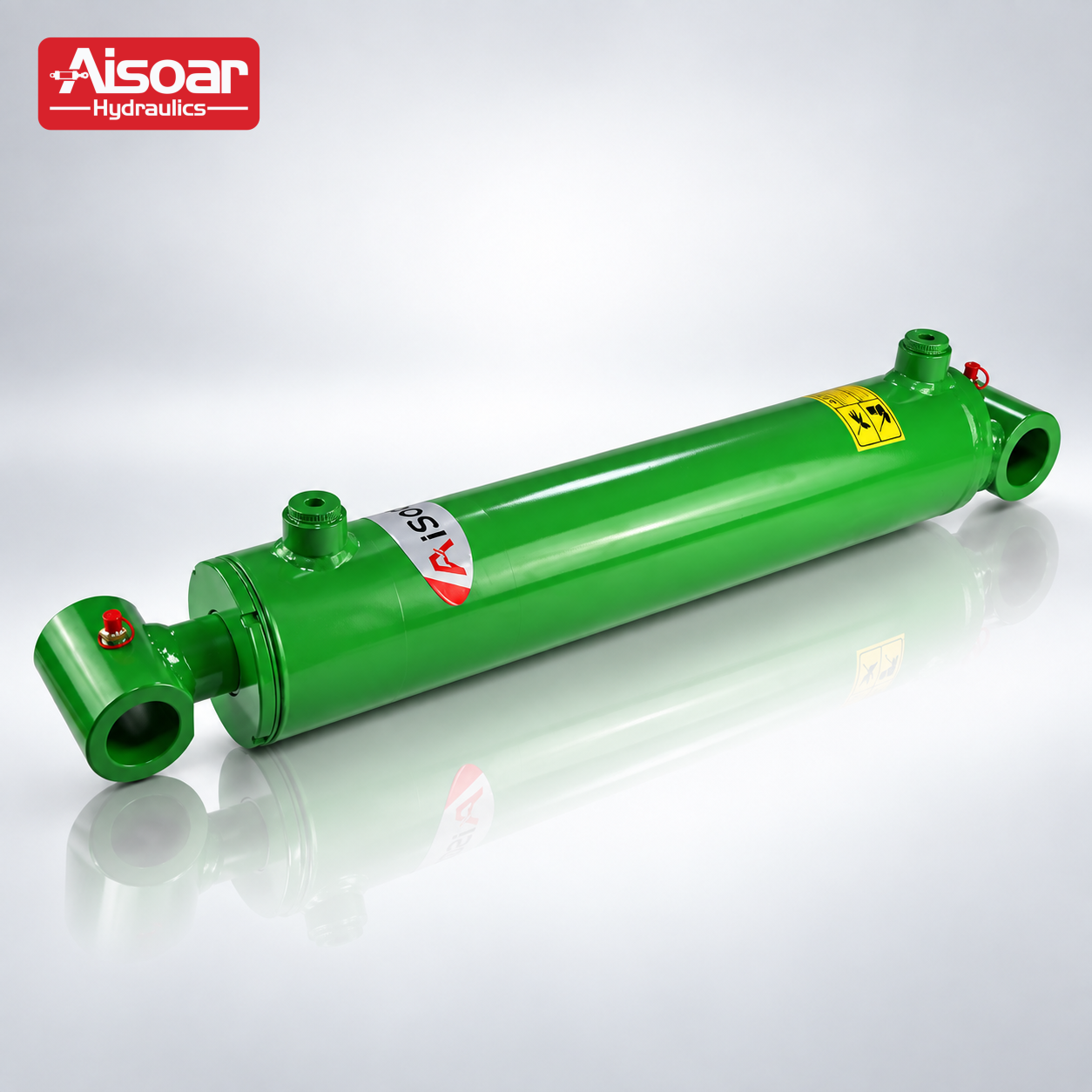

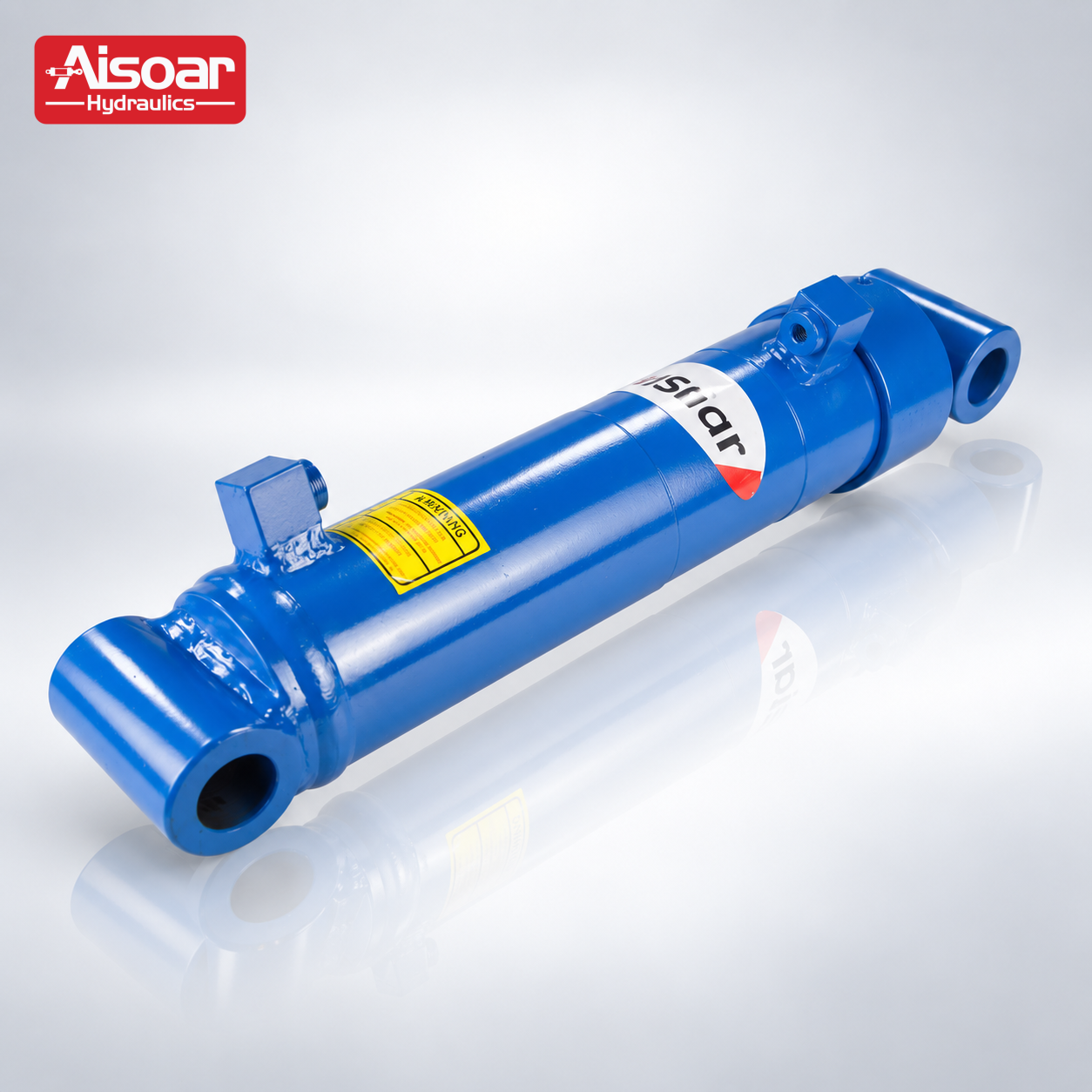

ÇAPRAZ BORU MONTAJLI WCT KAYNAKLI SİLİNDİRLER

AISOAR WCT welded cross-tube hydraulic cylinders feature cross-tube mounting at both the rod and base ends for secure pin-mounted installation. Designed for mobile, agricultural, construction, and industrial equipment, the WCT series is available in multiple bore and stroke sizes with OEM customization for dimensions, ports, valves, materials, and finishes.

Model:	WCT Welded Cross-Tube Cylinder
PSI:	3000
Uygulama:	Tarım / İnşaat Ekipmanları
Teslim süresi:	3~6 hafta
Örnek:	Mevcut
Özelleştirilmiş:	Mevcut

WCT

WCT Welded Cross-Tube Hydraulic Cylinders

Detaylı Çizim

WCT WELDED CYLINDERS WITH CROSS TUBE MOUNTS Factory

WCT WELDED CYLINDERS WITH CROSS-TUBE MOUNTS MANUFACTURER

Model Kod Sistemi

WCT Welded Cross-Tube Hydraulic Cylinder

WCT Hidrolik Silindirler Model Kodu Sistemi, hidrolik silindirlerin çeşitli bileşenlerini ve özelliklerini tanımlamak ve belirtmek için kullanılan kapsamlı bir kod sistemidir.

WCT Welded Cross-Tube Hydraulic Cylinder Overview：

AISOAR WCT welded cross-tube hydraulic cylinders are double-acting welded cylinders designed for agricultural, construction, material-handling, and other mobile equipment. Cross-tube mounts at both ends provide a compact and durable pin-mounted connection for applications requiring controlled pivoting movement.

Standard configurations are available in multiple bore and stroke sizes with working pressures up to 3,000 psi. Precision-honed steel tubing and hard chrome-plated piston rods help provide reliable hydraulic performance and long service life under demanding operating conditions.

Bore size, stroke, rod diameter, cross-tube dimensions, mounting configuration, port size and position, integrated valves, materials, coatings, and other specifications can be customized to meet OEM equipment requirements.

Double-Acting Operation： Provides hydraulic force in both extension and retraction for controlled machine movement.
Cross-Tube Mounting：Cross-tube mounts at both ends provide a compact pin-mounted connection and allow the cylinder to pivot with the machine linkage.
Welded Construction：The welded cylinder body provides a compact structure suitable for demanding mobile and industrial applications.
OEM Customization： Bore, stroke, rod diameter, cross-tube dimensions, ports, valves, materials, and surface finishes can be customized.

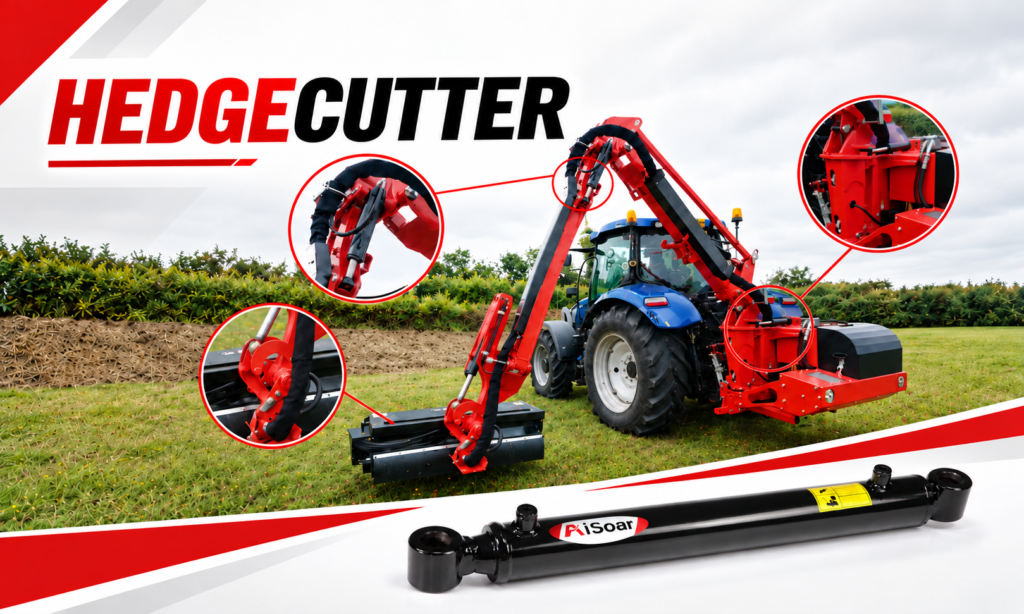

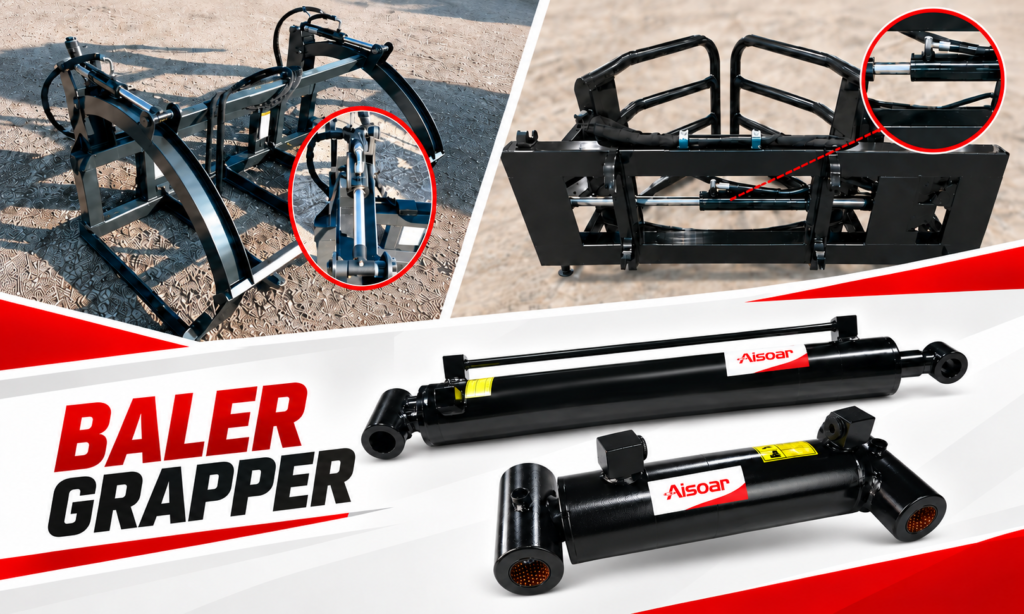

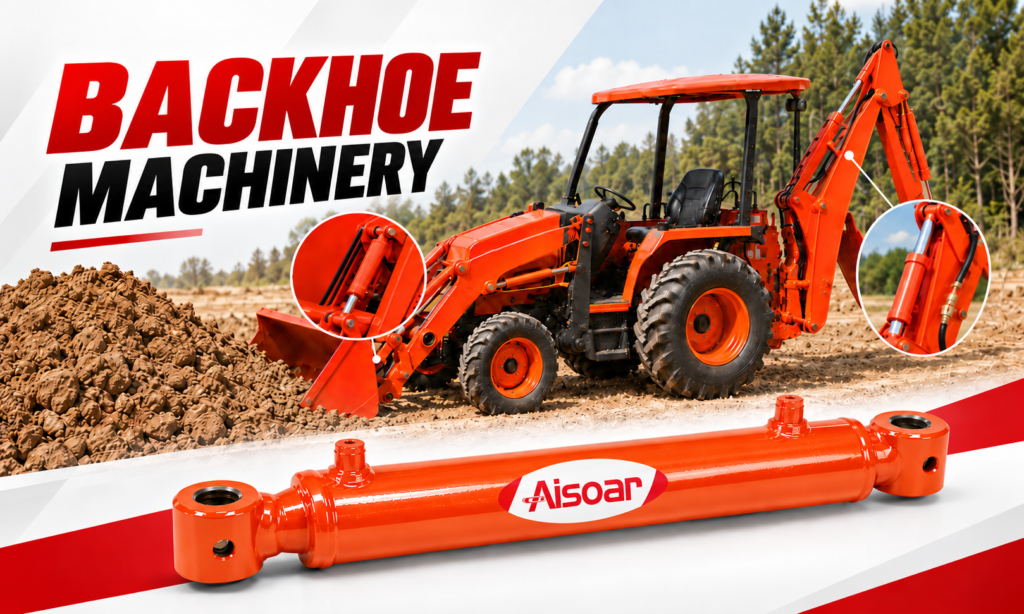

WCT Cross-tube Hydraulic Cylinders Application:

WCT cross-tube hydraulic cylinders are designed for equipment that requires compact pin-mounted installation and controlled pivoting movement. Their welded construction and cross-tube mounts make them suitable for lifting, positioning, folding, and linkage functions on backhoes, hedgecutters, baler grapplers, and other mobile or agricultural equipment. Bore, stroke, mounting dimensions, ports, valves, and other specifications can be customized to match different machine requirements.

Explore More Hydraulic Cylinder Applications →

WCT Hidrolik Silindir Çizimi

Ana boyutları aşağıdaki çizimde kontrol edebiliriz

Dimensional Data in Inches (Millimeters)
BORE	A	B	C	D	E	G	R
1.50 (38.10)	8 (203.2)	0.25 (6.35)	1/4NPT	1.00 (25.40)	2.25 (57.15)	2.00 (50.80)	0.77 (19.56)
2.00 (50.80)	8 (203.2)	0.25 (6.35)	3/8NPT	1.25 (31.75)	2.75 (69.85)	2.25 (57.15)	1.02 (25.90)
2.50 (63.50)	8 (203.2)	0.25 (6.35)	3/8NPT	1.50 (38.10)	3.25 (82.55)	2.25 (57.15)	1.02 (25.90)
3.00 (76.20)	8 (203.2)	0.25 (6.35)	1/2NPT	1.50 (38.10)	3.75 (95.25)	2.25 (57.15)	1.02 (25.90)
3.50 (88.90)	10 (254)	0.25 (6.35)	1/2NPT	1.75 (44.45)	4.25 (107.95)	2.25 (57.15)	1.27 (32.26)
4.00 (101.60)	10 (254)	0.25 (6.35)	1/2NPT	2.00 (50.80)	4.75 (120.65)	2.50 (63.50)	1.52 (38.61)
5.00 (127.00)	12 (304.8)	0.25 (6.35)	1/2NPT	2.50 (63.50)	5.75 (146.05)	3.25 (82.55)	1.77 (44.96)

Veri Tablosu

Burada WCT silindirleri için önemli boyutsal verileri görebiliriz

MAKALE	BORE İNÇ	STROKE İNÇ	ROD ÇAPI İNÇ	UZUNLUK MİN İNÇ	UZUNLUK MAKS İNÇ	LİMAN	AĞIRLIK LBS	AĞIRLIK KG
WCT1504-100	1.5	4	1	12	16	1/4NPT	9.04	4.1
WCT1506-100	1.5	6	1	14	20	1/4NPT	10.14	4.6
WCT1508-100	1.5	8	1	16	24	1/4NPT	11.47	5.2
WCT1510-100	1.5	10	1	18	28	1/4NPT	12.79	5.8
WCT2008-125	2	8	1.1/4	16	24	3/8NPT	13.45	6.1
WCT2010-125	2	10	1.1/4	18	28	3/8NPT	15.21	6.9
WCT2012-125	2	12	1.1/4	20	32	3/8NPT	16.98	7.7
WCT2014-125	2	14	1.1/4	22	36	3/8NPT	18.74	8.5
WCT2016-125	2	16	1.1/4	24	40	3/8NPT	20.51	9.3
WCT2018-125	2	18	1.1/4	26	44	3/8NPT	22.27	10.1
WCT2020-125	2	20	1.1/4	28	48	3/8NPT	24.03	10.9
WCT2024-125	2	24	1.1/4	32.8	56	3/8NPT	27	12.2
WCT2028-125	2	28	1.1/4	36	64	3/8NPT	31.09	14.1
WCT2030-125	2	30	1.1/4	38	68	3/8NPT	32.85	14.9
WCT2032-125	2	32	1.1/4	40	72	3/8NPT	34.84	15.8
WCT2036-125	2	36	1.1/4	44	80	3/8NPT	38.37	17.4
WCT2040-125	2	40	1.1/4	48	88	3/8NPT	41.9	19
WCT2048-125	2	48	1.1/4	56	104	3/8NPT	48.95	22.2
WCT2508-150	2.5	8	1.1/2	16	24	3/8NPT	19.85	9
WCT2510-150	2.5	10	1.1/2	18	28	3/8NPT	21.83	9.9
WCT2512-150	2.5	12	1.1/2	20	32	3/8NPT	24.03	10.9
WCT2514-150	2.5	14	1.1/2	22	36	3/8NPT	26.24	11.9
WCT2516-150	2.5	16	1.1/2	24	40	3/8NPT	28.44	12.9
WCT2518-150	2.5	18	1.1/2	26	44	3/8NPT	30.65	13.9
WCT2520-150	2.5	20	1.1/2	28	48	3/8NPT	32.85	14.9
WCT2524-150	2.5	24	1.1/2	32	56	3/8NPT	37.26	16.9
WCT2528-150	2.5	28	1.1/2	36	64	3/8NPT	41.45	18.8
WCT2530-150	2.5	30	1.1/2	38	68	3/8NPT	43.66	19.8
WCT2532-150	2.5	32	1.1/2	40	72	3/8NPT	45.86	20.8
WCT2536-150	2.5	36	1.1/2	44	80	3/8NPT	50.27	22.8
WCT2540-150	2.5	40	1.1/2	48	88	3/8NPT	54.68	24.8
WCT2548-150	2.5	48	1.1/2	56	104	3/8NPT	63.28	28.7
WCT3008-150	3	8	1.1/2	16	24	1/2NPT	24.7	11.2
WCT3010-150	3	10	1.1/2	18	28	1/2NPT	27.12	12.3
WCT3012-150	3	12	1.1/2	20	32	1/2NPT	29.55	13.4
WCT 3014-150	3	14	1.1/2	22	36	1/2NPT	31.97	14.5
WCT 3016-150	3	16	1.1/2	24	40	1/2NPT	34.4	15.6
WCT 3018-150	3	18	1.1/2	26	44	1/2NPT	36.82	16.7
WCT 3020-150	3	20	1.1/2	28	48	1/2NPT	39.25	17.8
WCT 3024-150	3	24	1.1/2	32	56	1/2NPT	44.1	20
WCT 3028-150	3	28	1.1/2	36	64	1/2NPT	48.95	22.2
WCT 3030-150	3	30	1.1/2	38	68	1/2NPT	51.38	23.3
WCT 3032-150	3	32	1.1/2	40	72	1/2NPT	53.58	24.3
WCT 3036-150	3	36	1.1/2	44	80	1/2NPT	58.43	26.5
WCT 3040-150	3	40	1.1/2	48	88	1/2NPT	63.28	28.7
WCT 3048-150	3	48	1.1/2	56	104	1/2NPT	72.99	33.1
WCT 3508-175	3.5	8	1.3/4	18	26	1/2NPT	32.63	14.8
WCT 3510-175	3.5	10	1.3/4	20	30	1/2NPT	35.72	16.2
WCT 3512-175	3.5	12	1.3/4	22	34	1/2NPT	38.81	17.6
WCT 3514-175	3.5	14	1.3/4	24	38	1/2NPT	41.67	18.9
WCT 3516-175	3.5	16	1.3/4	26	42	1/2NPT	44.76	20.3
WCT 3518-175	3.5	18	1.3/4	28	46	1/2NPT	47.63	21.6
WCT 3520-175	3.5	20	1.3/4	30	50	1/2NPT	50.72	23
WCT 3524-175	3.5	24	1.3/4	34	58	1/2NPT	56.67	25.7
WCT 3528-175	3.5	28	1.3/4	38	66	1/2NPT	62.62	28.4
WCT 3530-175	3.5	30	1.3/4	40	70	1/2NPT	65.71	29.8
WCT 3532-175	3.5	32	1.3/4	42	74	1/2NPT	68.8	31.2
WCT 3536-175	3.5	36	1.3/4	46	82	1/2NPT	74.75	33.9
WCT 3540-175	3.5	40	1.3/4	50	90	1/2NPT	80.7	36.6
WCT 3548-175	3.5	48	1.3/4	58	106	1/2NPT	92.61	42
WCT 4008-200	4	8	2	18	26	1/2NPT	40.79	18.5
WCT 4010-200	4	10	2	20	30	1/2NPT	44.54	20.2
WCT 4012-200	4	12	2	22	34	1/2NPT	48.29	21.9
WCT 4014-200	4	14	2	24	38	1/2NPT	51.82	23.5
WCT 4016-200	4	16	2	26	42	1/2NPT	55.57	25.2
WCT 4018-200	4	18	2	28	46	1/2NPT	59.09	26.8
WCT 4020-200	4	20	2	30	50	1/2NPT	62.84	28.5
WCT 4024-200	4	24	2	34	58	1/2NPT	70.12	31.8
WCT 4028-200	4	28	2	38	66	1/2NPT	77.4	35.1
WCT 4030-200	4	30	2	40	70	1/2NPT	81.14	36.8
WCT 4032-200	4	32	2	42	74	1/2NPT	84.67	38.4
WCT 4036-200	4	36	2	46	82	1/2NPT	91.95	41.7
WCT 4040-200	4	40	2	50	90	1/2NPT	99.23	45
WCT 4048-200	4	48	2	58	106	1/2NPT	114	51.7
WCT 5008-250	5	8	2.1/2	20	28	1/2NPT	71.88	32.6
WCT 5010-250	5	10	2.1/2	22	32	1/2NPT	76.07	34.5
WCT 5012-250	5	12	2.1/2	24	36	1/2NPT	80.48	36.47
WCT 5014-250	5	14	2.1/2	26	40	1/2NPT	84.67	38.37
WCT 5016-250	5	16	2.1/2	28	44	1/2NPT	89.08	40.37
WCT 5018-250	5	18	2.1/2	30	48	1/2NPT	93.49	43.37
WCT 5020-250	5	20	2.1/2	32	52	1/2NPT	97.68	44.27
WCT 5024-250	5	24	2.1/2	36	60	1/2NPT	106.28	48.17
WCT 5028-250	5	28	2.1/2	40	68	1/2NPT	115.1	52.16
WCT 5030-250	5	30	2.1/2	42	72	1/2NPT	119.29	54.06
WCT 5032-250	5	32	2.1/2	44	76	1/2NPT	123.7	56.06
WCT 5036-250	5	36	2.1/2	48	84	1/2NPT	132.3	59.96
WCT 5040-250	5	40	2.1/2	52	92	1/2NPT	140.9	63.86
WCT 5048-250	5	48	2.1/2	60	108	1/2NPT	158.1	71.65

WCT Hidrolik Silindirlerinizi Bugün Alın!

Call us or visit our website to get more information about the hydraulic cylinders you need. Need a non-standard WCT size? Send us your dimensions or drawing.

Malzeme

WCT Silindirlerimiz İçin Her Zaman Kaliteli Malzeme Kullanıyoruz

ROD: Hard Chrome Plated (20-60 μm)
TÜP:Daha uzun sızdırmazlık ömrü için honlanmış veya sıyrılmış çelik boru.
GLANDÇelik.
PİSTONÇelik.
UÇ MONTAJLAR:Çelik çapraz boru, gresörlüklü, kaynaklı.
LİMANLAR: NPT / NPTF / SAE options
MÜHÜRLERHallite.
BOYA: Siyah (STD), renkli ve diğer özel renkler mevcuttur.
ÇUBUK UÇLARI: Steel cross-tube with grease zerk

Üretim Süreçleri

WCT Hidrolik Silindirleri Nasıl Üretiyoruz

Talaşlı İmalat

Mazac ve Dawei'nin tornalama ve frezeleme bileşik merkezleri tarafından işlenen her bir parçanın toleransı ve doğruluğu iyi ve istikrarlı olacaktır.

Daha fazla bilgi edinin

Temizlik

Components are thoroughly cleaned using ultrasonic cleaning equipment before assembly to minimize contamination inside the hydraulic system.

Daha fazla bilgi edinin

Kaynak

Automated welding machines and robotic welding systems are used to improve weld consistency and structural reliability.

Daha fazla bilgi edinin

Birleştirme

Each hydraulic cylinder is assembled according to controlled procedures covering seals, piston, rod, gland, barrel, and mounting components.

Daha fazla bilgi edinin

Teftiş

Critical dimensions, mounting interfaces, and machined components are inspected throughout production to ensure conformity with drawings and specifications.

Daha fazla bilgi edinin

Test

Each finished cylinder is hydraulically tested for pressure performance, smooth operation, and internal and external leakage before shipment.

Tuz Spreyi Testi

Salt spray testing can be performed to evaluate corrosion resistance of piston rods, coatings, and surface treatments according to project requirements.

Daha fazla bilgi edinin

Boyama

Standard cylinders receive surface preparation, primer, and finish coating, while custom colors and coating requirements are available for OEM projects.

Kendi standart boya rengimiz var ve boya kalınlığı 40 mikrondur.

Daha fazla bilgi edinin

Paket

Kabarcık çanta + Tahta sandık (varsayılan olarak), Karton kutu isteğe bağlıdır.

Daha fazla bilgi edinin

Fabrikamız

Kaynaklı Cleviz Hidrolik Silindir Tedarikçisi

Kaynaklı Cleviz Hidrolik Silindir Fabrikası

OEM & Custom Engineering Available

WCT Hydraulic Cylinder Customization Options

AISOAR can customize WCT welded tube hydraulic cylinders according to your equipment and operating requirements. Bore size, stroke, rod diameter, cross-tube dimensions, port configuration, integrated valves, materials, and surface finishes can all be adapted for OEM applications.

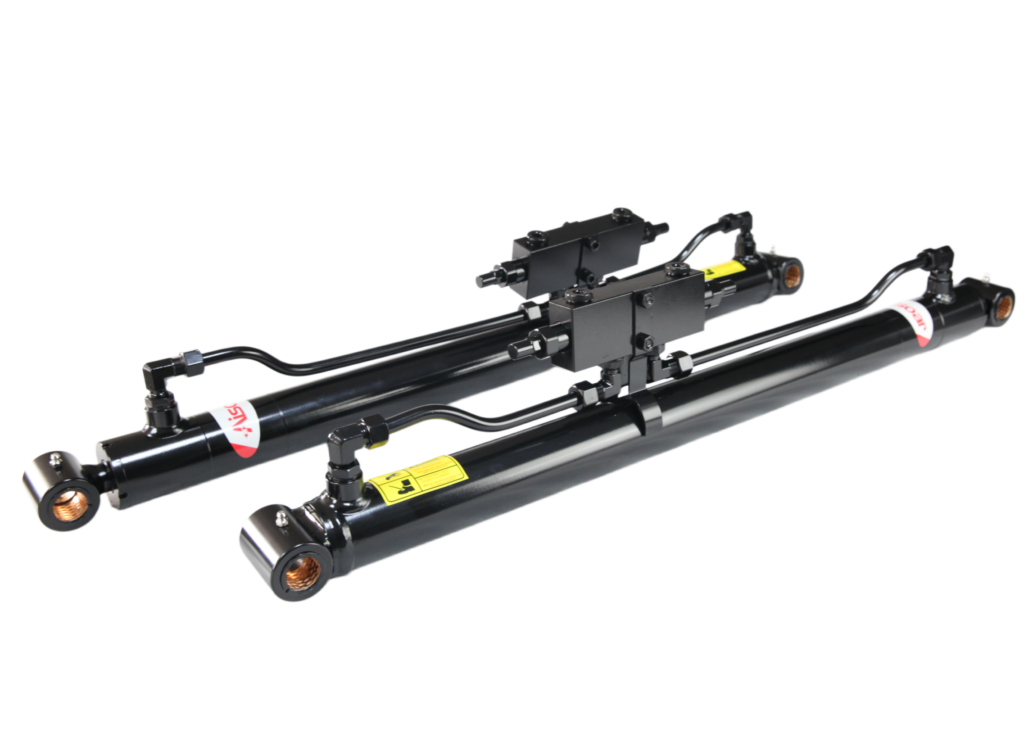

Entegre Vana Seçenekleri

Counterbalance valves, check valves, and other hydraulic control components can be integrated when required.

WCT Hydraulic Cylinder Custom Dimensions

Custom Dimensions

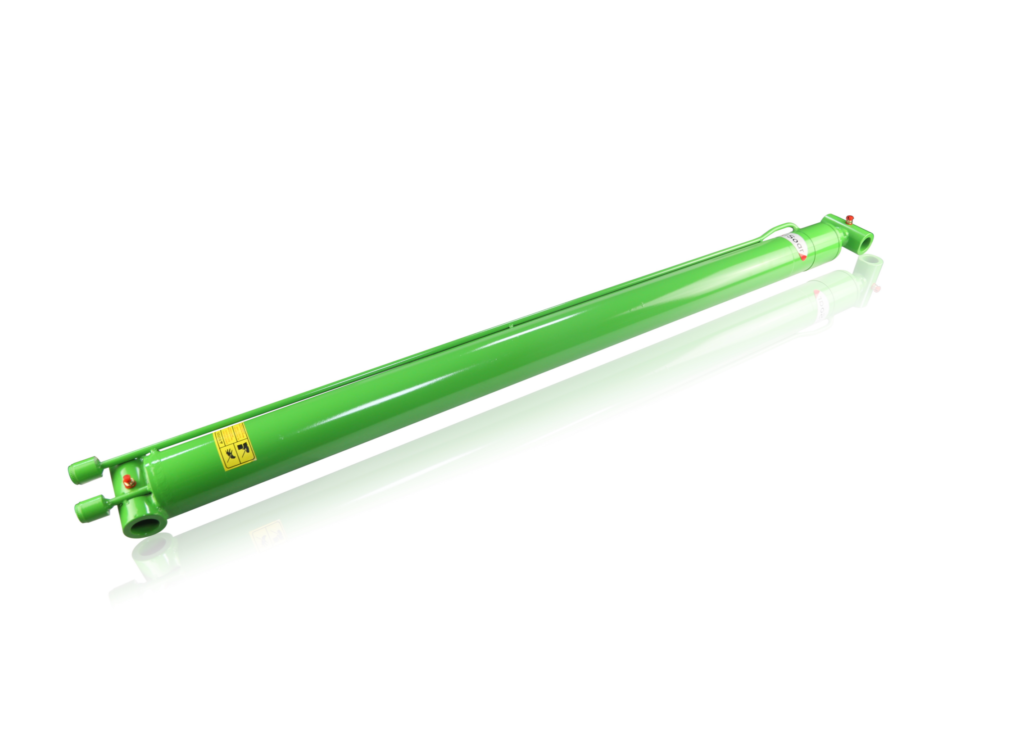

Bore, stroke, rod diameter, clevis width, pin diameter, and retracted length can be customized to match your machine requirements.

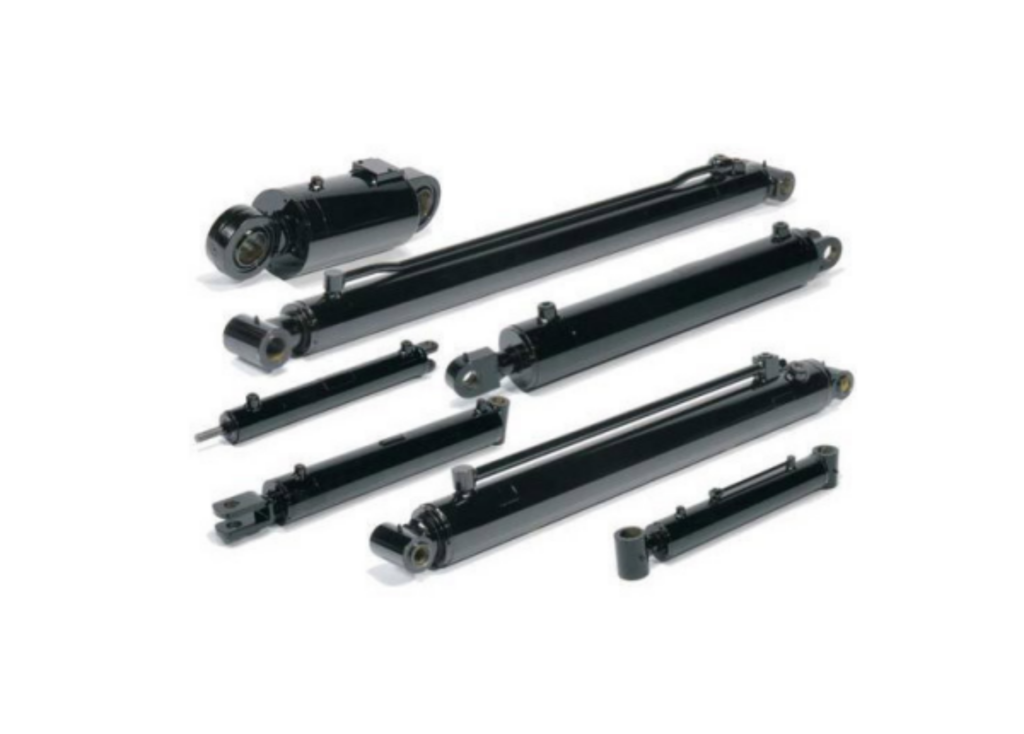

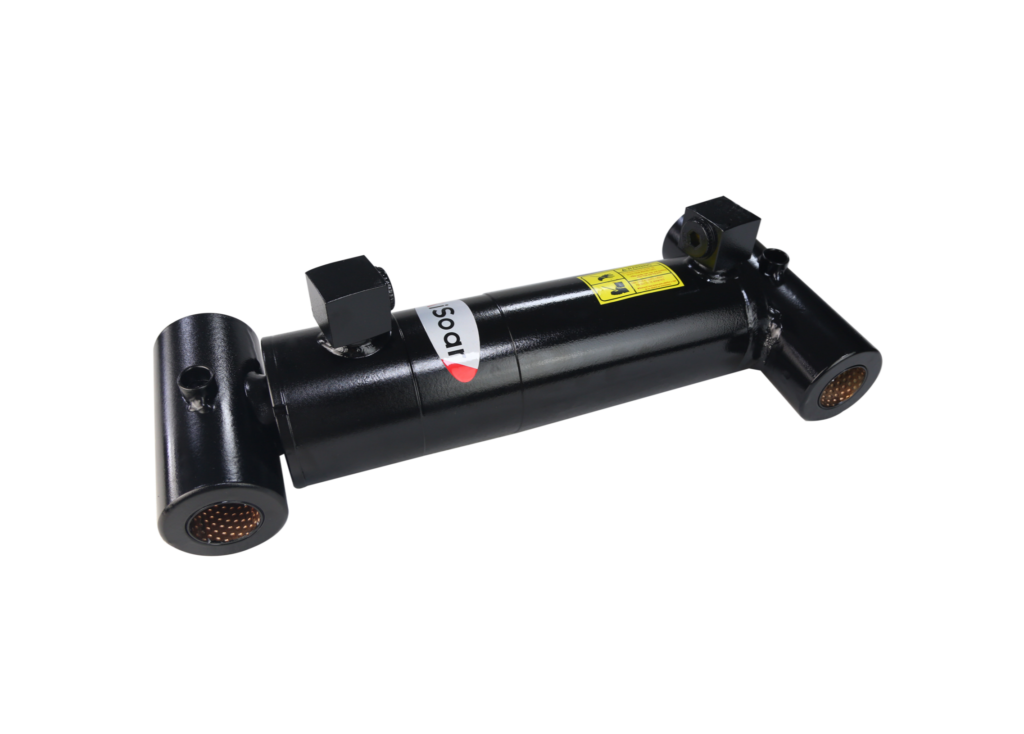

Custom Mounting Configuration
Different end mounting styles and mounting dimensions can be combined or customized to fit specific equipment structures and replacement requirements.

Custom Port Configuration
Port size, thread type, port position, and orientation can be customized to suit different hydraulic connections, hose layouts, and machine installation requirements.

Send us your drawing, dimensions, or existing cylinder sample, and our engineers can help develop a matching WCT cylinder solution.

SSS

Sıkça Sorulan Sorular

Bazı sorularınızı yanıtlamaya çalışacağız

A: WCT cross-tube cylinders are commonly used for lifting, positioning, folding, tilting, and linkage functions on equipment such as backhoes, hedgecutters, baler grapplers, trailers, agricultural implements, and other mobile machinery.

A: Key dimensions include bore size, stroke, rod diameter, retracted length, extended length, pin diameter, cross-tube dimensions, port size, and working pressure. For replacement cylinders, pin-to-pin dimensions and mounting details should also be confirmed.

A: Yes. Bore size, stroke, rod diameter, cross-tube dimensions, mounting configuration, port size and position, integrated valves, materials, coatings, and paint colors can be customized to match OEM or replacement requirements.

A: Yes. Standard cross-tube mounting can be modified or combined with other end mounting configurations when required by the machine structure. Mounting width, pin diameter, and end connection dimensions can also be customized.

A:Please provide the bore, stroke, rod diameter, retracted length, mounting dimensions, pin diameter, port size, working pressure, quantity, and any special requirements. A drawing, sample cylinder, or equipment information can also be used for evaluation.

AiSoar hidroliğine sahip ekipmanları dört nedenden dolayı her yıl güvenle kullanabilirsiniz:

1. AiSoar Hydraulics, kaliteden ödün vermeden uygun fiyatlandırma sağlar. Katı kalite standartlarını uygularken ve hammaddeleri kontrol ederken, bizim için maliyet kontrolünün anahtarı standart ve büyük ölçekli üretimdir.

2. Silindirlerimize çocuklarımız gibi bakıyoruz. Montajdan önce tüm parçaları yüksek basınçlı temizleme makinesiyle temizleriz ve testten önce yıkarız. Her silindir, iç veya dış conta sızıntısı olmadığından emin olmak için paketlemeden önce test prosedüründen geçer. Silindirlerin mükemmel göründüğünden emin olmak için ana boyadan önce astar boya ile boyarız.

3. Sadece 1 adet bile olsa özelleştirilmiş silindirler için kısa süreli üretim tamamen desteklenmektedir.

4. WCT silindirleri için 3D çizimlere erişebileceğiniz bir 3D Çizim Galerisi başlattık.

Silindirinizin delik ve strok boyutunu belirleyin ve çalışmaya hazırsınız. AiSoar Hydraulics size hizmet etmek için burada.

Aisoar Hidrolik Silindirler Kataloğu

AiSoar hidrolik, çeşitli delik ve strok boyutlarında mevcut olan, hem çubuk uçlarına hem de kapağa monte edilmiş çapraz borulu WCT serisi kaynaklı hidrolik silindirler sunmaktadır. Standart bir tip olarak, silindirlerin delik boyutları 4 inç'e kadar, strokları 48 inç'e kadar ve basınç değerleri 3000PSI'ye kadar çıkmaktadır. WCT serisi silindirler için özelleştirilmiş strok, entegre valf ve paslanmaz çelik boru/çubuk gibi standart dışı seçenekler de mevcuttur. Tek etkili de isteğe bağlıdır.
